1644882

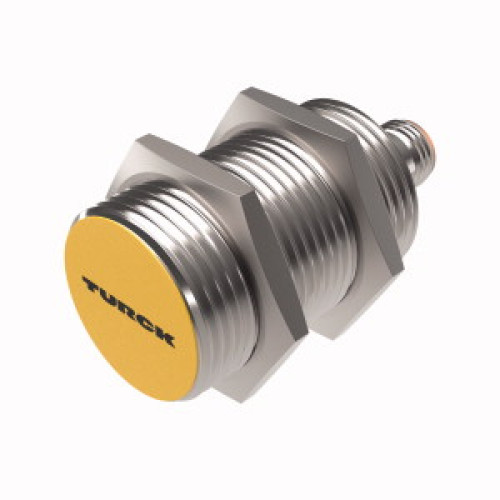

Inductive Sensor, IO-Link Communication and Configuration

Manufacturer's No: BI20U-M30-IOL6X2-H1141     Manufacturer: Turck Banner
Inductive Sensor, IO-Link Communication and Configuration

Availability On Request

£138.21
  • Inductive Sensor with IO-Link Communication
  • Operating Voltage: 10-30 VDC
  • Rated Switching Distance: 20 mm

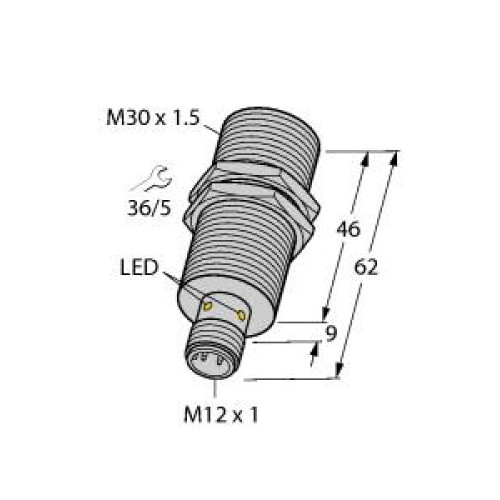

  • Material: Chrome-plated brass, Flush, M30 x 1.5 threaded tube
  • Factor 1 for all metals, Resistant to magnetic fields
  • Large switching distance
  • Electrical Outputs independently configurable
  • DC 4-wire, 10-30 VDC, M12 x 1 connector
  • Configuration and communication via IO-Link v1.1 or standard I/O
  • Switching distance and hysteresis can be parametrized per output

Read more

  • Identification via 32-byte memory
  • Temperature monitoring with adjustable limits
  • Various timer and pulse monitoring functions


Product

Manufacturer Material ID -
BI20U-M30-IOL6X2-H1141
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Housing material -
Metal
Length of sensor -
62 Millimetre
Mechanical mounting condition for sensor -
Concise
Supply voltage -
10 Volt
Switching distance -
20 Millimetre
Switching frequency -
500 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Change-over contact
Type of switching output -
PNP/NPN
Voltage type -
DC
Turck Banner

Availability On Request

£138.21
