BVP:261715

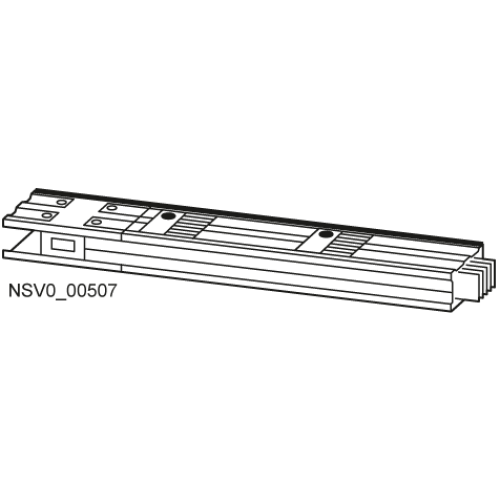

BD2C-3-250-SB-3 STANDARD LENGTH 3,25M 250A, N + PE, 12 TAP OFFS

Manufacturer's No: BVP:261715     Manufacturer: Siemens
BD2C-3-250-SB-3 STANDARD LENGTH 3,25M 250A, N + PE, 12 TAP OFFS

Availability Back Order

POA
  • Model: BD2C-3-250-SB-3
  • Standard Length: 3.25 meters
  • Current Capacity: 250A
  • Configuration: Neutral + Protective Earth (N + PE)
  • Number of Tap Offs: 12


Product

Manufacturer Material ID -
BVP:261715
Net Weight -
27.50kg

Additional Product Information

Commodity Code -
85369001
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
26101601

Technical Specification

Degree of protection (NEMA) -
UN
RAL-number -
7035
Degree of protection (IP) -
IP52
Length busbar trunk -
3250 Millimetre
Colour -
Grey
Model -
Single
RAL number -
7035
Degree of protection (IP rating) -
IP55
Height -
68 Millimetre
Length -
3250 Millimetre
Number of conductors (without earthing) -
4
Number of poles -
5
Number of tap-off units -
12
Rated current at AC 50 Hz -
250 Ampere
Rated voltage at AC 50 Hz -
690 Volt
Width -
167 Millimetre

Availability Back Order

POA
