2CMA142444R1000

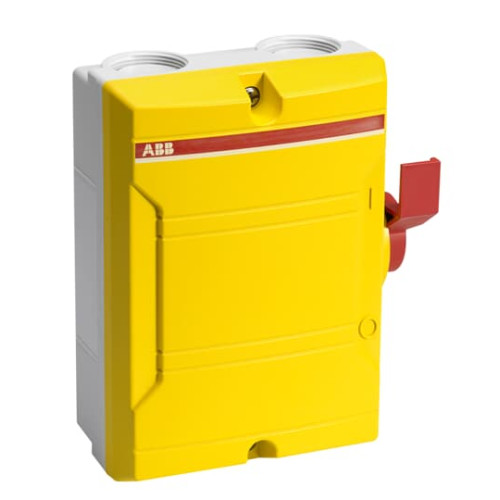

BW425YTPN Enclosed Switch Disconnector

Manufacturer's No: BW425YTPN     Manufacturer: ABB
BW425YTPN Enclosed Switch Disconnector

Availability On Request

£48.82
  • BW425YTPN Enclosed Switch Disconnector
  • 4-pole, 415V AC23, 16A, 7.5kW
  • Plastic enclosure with IP65 protection
  • Side-operated handle in RedYellow
  • UV protected polycarbonate enclosure
  • Suitable for outdoor and indoor use
  • Available in grey, yellow, and white colors
  • Threaded cable entries with knock out holes for 2 parallel cables
  • Membrane grommets included (IP54)
  • Padlockable handle for security

Read more

  • Interlocked cover for safety
  • Designed for 5-wire system with fixed neutral and PE terminals
  • Easily accessible terminals for simple installation


Product

Manufacturer Material ID -
BW425YTPN
Net Weight -
3.10kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
BG
UNSPSC -
39122330

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Type of electrical connection of main circuit -
UN
Rated short-time withstand current lcw -
- kiloampere
Rated permanent current at AC-21, 400 V -
25 Ampere
Colour control element -
Red
Degree of protection (IP), front side -
IP65
Degree of protection (NEMA) -
Other
Depth -
60 Millimetre
Device construction -
Complete device in housing
Height -
130 Millimetre
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Number of switches -
1
Rated operating voltage -
690 Volt
Rated operation power at AC-23, 400 V -
7.5 Kilowatt
Rated permanent current at AC-23, 400 V -
16 Ampere
Rated permanent current Iu -
25 Ampere
Suitable for distribution board installation -
Switching power at 400 V -
7.5 Kilowatt
Type of control element -
Rocker lever
Version as main switch -
Version as maintenance-/service switch -
Width -
111 Millimetre
ABB

Availability On Request

£48.82
