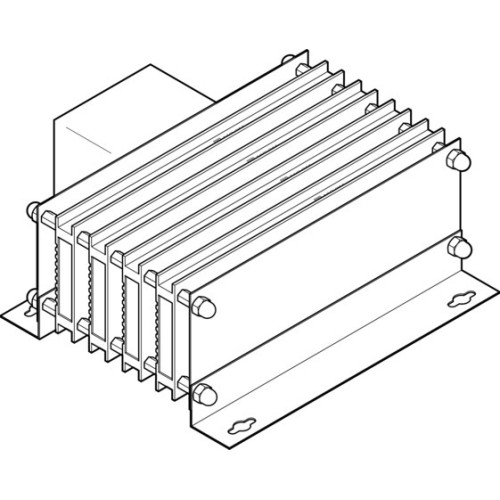

CACR-KL2-40-W2000 Braking resistor

Manufacturer's No: CACR-KL2-40-W2000     Manufacturer: Festo
CACR-KL2-40-W2000 Braking resistor

Availability On Request

£590.14
  • Braking resistor model: CACR-KL2-40-W2000
  • Size: 500
  • Mounting position: Free convection, Vertical
  • Pulse energy at 380V: 8000 WS, at 780V: 7200 WS
  • Performance at 35% duty cycle and 20°C: 2000W
  • Brake resistance rating: 800W
  • Nominal power at 380V: 600W, at 780V: 480W
  • Resistance value: 40 ohms
  • Approvals: c CSA us (OL), c UL us - Recognized (OL)
  • LABS (PWIS) conformity: VDMA24364 zone III

Read more

  • Degree of protection: IP65
  • Ambient temperature range: 0°C to 50°C
  • Product weight: 2400g
  • Type of mounting: With through-hole, With accessories, Either
  • RoHS-compliant materials


Product

Manufacturer Material ID -
CACR-KL2-40-W2000
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85332900
Country of Origin -
DE
UNSPSC -
32151703
Festo

Availability On Request

£590.14
