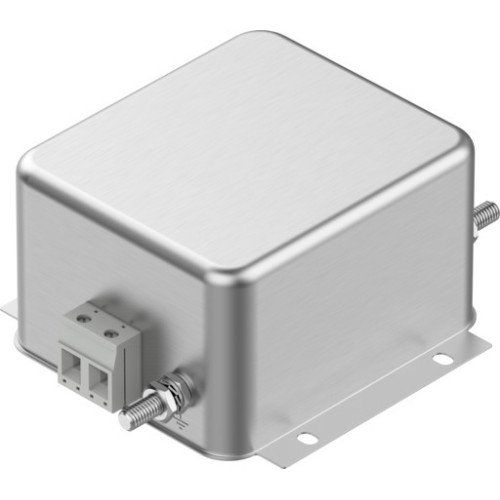

CAMF-C6-F-C20-3A Mains filter

Manufacturer's No: CAMF-C6-F-C20-3A     Manufacturer: Festo
CAMF-C6-F-C20-3A Mains filter

Availability Back Order

£264.52
  • Current rating at 40°C: 20 A
  • Operational voltage range AC: 0-250 V
  • Insulation voltage: 1100 V
  • Approval: ENEC, UL-Recognized (OL), cUL-Recognized (OL)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Degree of protection: IP20
  • Ambient temperature: -25°C to 100°C
  • Storage temperature: -25°C to 100°C
  • Product weight: 700 g
  • Type of mounting: Mounting plate with screws

Read more

  • Mounting position: Horizontal
  • Electrical connection 1: Power supply, Terminal strip, Screw terminal, 2 connections/cores, conductor cross section: 4 mm², 6 mm²
  • Electrical connection 2: Power supply, Terminal strip, Screw terminal, 2 connections/cores, conductor cross section: 4 mm², 6 mm²
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
CAMF-C6-F-C20-3A
Net Weight -
0.97kg

Additional Product Information

Commodity Code -
85489090
Country of Origin -
DE
UNSPSC -
32151703
Festo

Availability Back Order

£264.52
