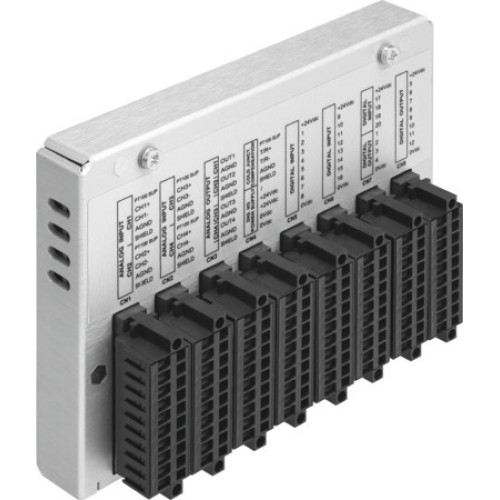

CDPX-EA-V1 Input/output module

Manufacturer's No: CDPX-EA-V1     Manufacturer: Festo
CDPX-EA-V1 Input/output module

Availability Back Order

£760.67
  • Input/output module CDPX-EA-V1
  • Dimensions: Height: 89mm, Length: 125mm, Mounting Depth: 34mm
  • Approvals: C-Tick, UL Listed (OL), CE Mark for EU EMC and RoHS Directives, UKCA Mark for UK EMC and RoHS Instructions, VDMA24364 Zone III
  • Storage Temperature: -20°C to 70°C
  • Relative Air Humidity: 5% to 85%, Non-condensing
  • Degree of Protection: IP20
  • Ambient Temperature: 0°C to 50°C
  • Product Weight: 230g
  • RoHS-compliant materials
  • Digital Inputs: 20, including high-speed counter inputs, incremental encoder connections

Read more

  • Digital Input Signal Delay: 0.1ms, 3ms, 10ms, 20ms
  • Digital Input Voltage/Current: 24V DC, Nominal TRUE Value: 12-30V DC, Nominal FALSE Value: 0V
  • Analogue Inputs: 4, Resolution: 12 bit, Signal Ranges: 0-10V, 0-20mA, PT100, ±10V
  • Analogue Inputs Accuracy: Absolute 0.1% at 25°C, Linearity Error 0.1% FS at 25°C, Input Resistance: 47?
  • Digital Outputs: 12, Output Voltage: 12-30V DC, Output Current: 0.5A
  • Analogue Outputs: 4, Resolution: 12 bit, Max Load Impedance: 470?, Signal Range: ±10V
  • Analogue Outputs Linearity Error at 25°C: ±0.2%


Product

Manufacturer Material ID -
CDPX-EA-V1
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
IT
UNSPSC -
32151705
