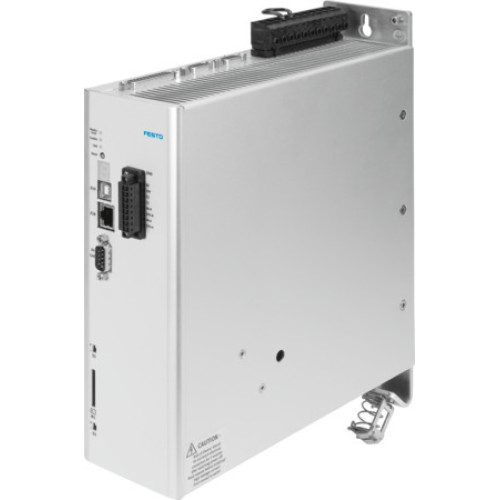

CMMP-AS-C10-11A-P3-M0 Motor controller

Manufacturer's No: CMMP-AS-C10-11A-P3-M0     Manufacturer: Festo
CMMP-AS-C10-11A-P3-M0 Motor controller

Availability On Request

£3,019.23
  • Motor controller model: CMMP-AS-C10-11A-P3-M0
  • Mounting type: On sub-base, Screw-clamped
  • Weight: 3800 g
  • Display: 7-segment display
  • Certifications: RCM, c UL us listed (OL), CE, UKCA
  • Storage temperature: -25°C to 70°C
  • Ambient temperature: 0°C to 40°C
  • Relative air humidity: 0% to 90%
  • Degree of protection: IP10, IP20
  • Nominal operating voltage AC: 400 V

Read more

  • Input voltage range AC: 230 V to 480 V
  • Mains frequency: 50 Hz, 60 Hz
  • Nominal current: 11 A
  • Integrated mains filter
  • Max. intermediate circuit voltage DC: 560 V
  • Brake resistance: 68 ohm, Pulse power: 8.5 KVA
  • Nominal voltage for logic power supply DC: 24 V
  • Output voltage class AC: 3x 0 - 360 V, Nominal output current: 10 A
  • Peak current per phase: 20 A, Max. peak current duration: 5 s
  • Controller nominal output: 6000 D46, Maximum output: 12000 D46
  • Output frequency: 0 Hz to 1000 Hz
  • Parameterisation interfaces: USB, Ethernet
  • Fieldbus links: CANopen, Modbus/TCP
  • Communication profile: DS301/DSP402
  • Encoder interface output: Resolution 16384 ppr
  • Number of digital logic inputs: 10, Galvanically isolated
  • Number of digital logic outputs 24 V DC: 5, Galvanically isolated
  • Number of analogue setpoint inputs: 2, Differential inputs
  • Working range setpoint input: ± 10 V, Impedance: 20 kohm
  • Number of analogue monitor outputs: 2, Working range: ± 10 V, Resolution: 9 BIT
  • Safety functions: Safe torque off (STO), Safe Stop 1 (SS1)
  • Safety Integrity Level (SIL): SIL 3/SILCL 3, Performance Level (PL): Category 4, performance level e
  • Diagnostic coverage: 97%, SFF Safe Failure Fraction: 99.17%
  • Hardware fault tolerance: 1, Proof test interval: 20 JHR


Product

Manufacturer Material ID -
CMMP-AS-C10-11A-P3-M0
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
DE
UNSPSC -
39121104
Festo

Availability On Request

£3,019.23
