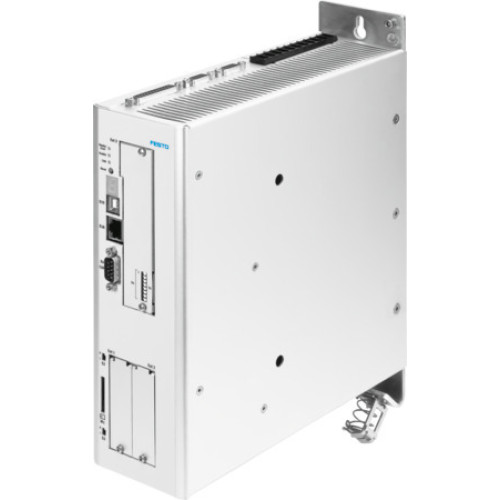

CMMP-AS-C15-11A-P3-M3 Motor controller

Manufacturer's No: CMMP-AS-C15-11A-P3-M3     Manufacturer: Festo
CMMP-AS-C15-11A-P3-M3 Motor controller

Availability On Request

£4,046.68
  • Motor controller model: CMMP-AS-C15-11A-P3-M3
  • Mounting type: On sub-base, Screw-clamped
  • Weight: 3450 g
  • Display: 7-segment display
  • Approvals: RCM trademark, c UL us listed (OL), CE mark for EU EMC, EC Machinery, EU Low Voltage, EU RoHS, UKCA for EMC, machines, RoHS, electrical equipment
  • Storage temperature: -25°C to 70°C
  • Ambient temperature: 0°C to 40°C
  • Relative air humidity: 0% to 90%
  • Degree of protection: IP10, IP20
  • Pollution degree: 2

Read more

  • RoHS-compliant materials
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Phases of nominal operating voltage: 3-phase
  • Nominal operating voltage AC: 400 V
  • Permissible voltage fluctuations: ± 10%
  • Mains frequency: 50 Hz, 60 Hz
  • Nominal current: 13 A
  • Mains filter: Integrated
  • Max. intermediate circuit voltage DC: 560 V
  • Brake resistance: 68 ohm, Pulse power: 8.5 KVA
  • Nominal voltage for logic power supply DC: 24 V
  • Logic power supply current consumption: 1 A
  • Output voltage class AC: 3x 0 - 360 V
  • Nominal output current: 15 A, Nominal current per phase: 15 A
  • Peak current per phase: 30 A, Max. peak current duration: 5 s
  • Controller nominal output: 9000 D46, Maximum output: 18000 D46
  • Output frequency: 0 Hz to 1000 Hz
  • Parameterisation interface: USB, Ethernet
  • Fieldbus link: CANopen, DeviceNet, EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET, Profibus DP
  • Communication profile: DS301/DSP402, FHPP
  • Process interfacing: I/O coupling, For 256 position sets
  • Max. fieldbus transmission rate: 1 MBS
  • Bus connection: Plugs, 9-pin, Sub-D
  • Encoder interface output: Resolution 16384 ppr, Actual value feedback, Setpoint specification
  • Encoder interface input: 3-phase encoder signals, EnDat, HIPERFACE, RS422, SINCOS, Setpoint speed value, Slave drive speed specification
  • Digital logic inputs: 10, Galvanically isolated, Freely configurable, Working range: 8 V to 30 V
  • Digital logic outputs: 5, Galvanically isolated, Freely configurable in some cases, Max. current: 100 mA
  • Analogue setpoint inputs: 2, Differential inputs, Configurable for speed and current, Working range: ± 10 V, Impedance: 20 kohm
  • Analogue monitor outputs: 2, Working range: ± 10 V, Resolution: 9 BIT, Short-circuit proof


Product

Manufacturer Material ID -
CMMP-AS-C15-11A-P3-M3
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
DE
UNSPSC -
39121104
Festo

Availability On Request

£4,046.68
