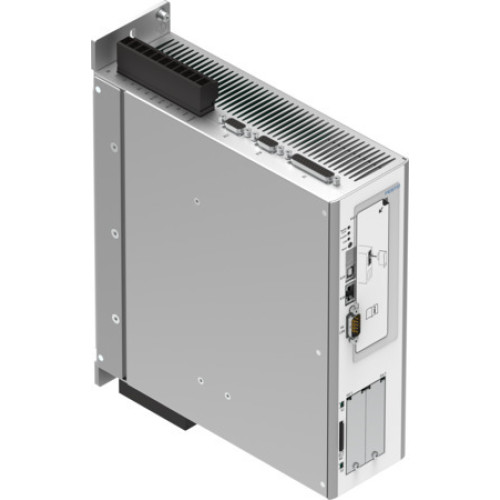

CMMP-AS-C5-11A-P3-M3 Motor controller

Manufacturer's No: CMMP-AS-C5-11A-P3-M3     Manufacturer: Festo
CMMP-AS-C5-11A-P3-M3 Motor controller

Availability On Request

£2,720.01
  • Motor controller model: CMMP-AS-C5-11A-P3-M3
  • Required plug-in module: CAMC-DS-M1, CAMC-G-S1, or CAMC-G-S3
  • Mounting types: On sub-base, Tightened
  • Product weight: 3450 g
  • Display: Seven-segment display
  • Authorizations: RCM Mark, c UL us - Listed (OL)
  • CE mark compliance: EU EMC Directive, EU Machinery Directive, EU Low Voltage Directive, EU RoHS Directive
  • UKCA marking compliance: UK EMC instructions, UK machinery regulations, UK RoHS instructions, UK electrical equipment regulations
  • Storage temperature: -25°C to 70°C
  • Ambient temperature: 0°C to 40°C

Read more

  • Relative air humidity: 0% to 90%
  • Degree of protection: IP10, IP20
  • Pollution degree: 2
  • RoHS-compliant materials
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Phases of nominal operating voltage: 3-phase
  • Nominal operating voltage AC: 400 V
  • Permissible voltage fluctuations: ±10%
  • Mains frequency: 50 Hz, 60 Hz
  • Nominal current: 5.5 A
  • Integrated mains filter
  • Max. intermediate circuit voltage DC: 560 V
  • Brake resistance: 68 Ohm, Pulse power: 8.5 KVA
  • Nominal voltage for logic power supply DC: 24 V
  • Permissible range for logic voltage: ±20%
  • Current consumption of logic power supply: 1 A
  • Output voltage class AC: 3x 0 - 360 V
  • Nominal output current: 5 A
  • Peak current per phase: 15 A, Max. peak current duration: 5 s
  • Controller nominal output: 3000 D46, Maximum output: 6000 D46
  • Output frequency: 0 Hz to 1000 Hz
  • Parameterization interfaces: USB, Ethernet
  • Fieldbus links: CANopen, DeviceNet, EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET, Profibus DP
  • Communication profiles: DS301/DSP402, FHPP
  • Process interfacing: I/O coupling, For 256 position sets
  • Max. fieldbus transmission rate: 1 MBS
  • Bus connection: Plugs, 9-pin, Sub-D
  • Encoder interface output: Resolution 16384 ppr, Actual value feedback, Setpoint specification
  • Encoder interface input: 3-phase encoder signals, EnDat, HIPERFACE, RS422, SINCOS, Setpoint speed value, Specifies speed of slave drive
  • Number of digital logic inputs: 10, Galvanically isolated, Freely configurable
  • Working range of logic input: 8 V to 30 V
  • Number of digital logic outputs 24 V DC: 5, Galvanically isolated, Freely configurable
  • Max. current digital logic outputs: 100 mA
  • Number of analogue setpoint inputs: 2, Differential inputs, Configurable for speed, Configurable for current
  • Working range setpoint input: ±10 V, Impedance: 20 kOhm
  • Number of analogue monitor outputs: 2, Working range: ±10 V, Resolution: 9 BIT, Short-circuit proof


Product

Manufacturer Material ID -
CMMP-AS-C5-11A-P3-M3
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
DE
UNSPSC -
39121104
