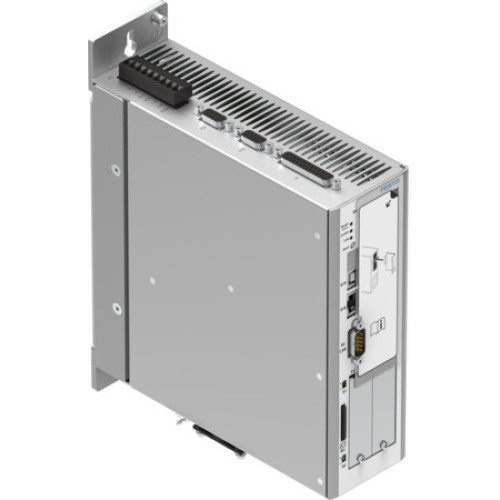

CMMP-AS-C5-3A-M3 Motor controller

Manufacturer's No: CMMP-AS-C5-3A-M3     Manufacturer: Festo
CMMP-AS-C5-3A-M3 Motor controller

Availability On Request

£2,058.26
  • Motor controller model: CMMP-AS-C5-3A-M3
  • Required plug-in module: CAMC-DS-M1, CAMC-G-S1, or CAMC-G-S3
  • Mounting type: On sub-base or tightened
  • Product weight: 2200 g
  • Display: Seven-segment display
  • Authorisation: RCM Mark, c UL us - Listed (OL)
  • CE mark compliance: EU EMC Directive, EU Machinery Directive, EU Low Voltage Directive, EU RoHS Directive
  • UKCA marking compliance: UK EMC instructions, UK machinery regulations, UK RoHS instructions, UK electrical equipment regulations
  • Storage temperature: -25°C to 70°C
  • Ambient temperature: 0°C to 40°C

Read more

  • Relative air humidity: 0% to 90%
  • Degree of protection: IP10, IP20
  • Pollution degree: 2
  • RoHS-compliant materials
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Phases of nominal operating voltage: Single-phase
  • Nominal operating voltage AC: 230 V
  • Permissible voltage fluctuations: ±10%
  • Mains frequency: 50 Hz, 60 Hz
  • Nominal current: 4 A, 6 A
  • Mains filter: Integrated
  • Max. intermediate circuit voltage DC: 320 V
  • Brake resistance: 60 Ohm
  • Pulse power of brake resistance: 2.8 KVA
  • Nominal voltage for logic power supply DC: 24 V
  • Permissible range for logic voltage: ±20%
  • Current consumption of logic power supply without clamping brake: 0.65 A
  • Output voltage class AC: 3x 0 - 270 V
  • Nominal output current: 5 A
  • Nominal current per phase, effective: 5 A
  • Peak current per phase, effective: 10 A
  • Max. peak current duration: 5 s
  • Controller nominal output: 1000 D46
  • Maximum output: 2000 D46
  • Output frequency: 0 Hz, 1000 Hz
  • Parameterisation interface: USB, Ethernet
  • Fieldbus link: CANopen, DeviceNet, EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET, Profibus DP
  • Communication profile: DS301/DSP402, FHPP
  • Process interfacing: I/O coupling, For 256 position sets
  • Max. fieldbus transmission rate: 1 MBS
  • Bus connection: Plugs, 9-pin, Sub-D
  • Encoder interface output: Resolution 16384 ppr, Actual value feedback, Setpoint specification
  • Encoder interface input: 3-phase encoder signals, EnDat, HIPERFACE, RS422, SINCOS, Setpoint speed value, Slave drive speed specification
  • Number of digital logic inputs: 10, Galvanically isolated, Freely configurable
  • Working range of logic input: 8 V to 30 V
  • Number of digital logic outputs 24 V DC: 5, Galvanically isolated, Freely configurable in some cases, Max. current 100 mA
  • Number of analogue setpoint inputs: 2, Differential inputs, Configurable for speed and current, Working range ±10 V, Impedance 20 kOhm
  • Number of analogue monitor outputs: 2, Working range ±10 V, Resolution 9 BIT, Short-circuit proof


Product

Manufacturer Material ID -
CMMP-AS-C5-3A-M3
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
DE
UNSPSC -
39121104
