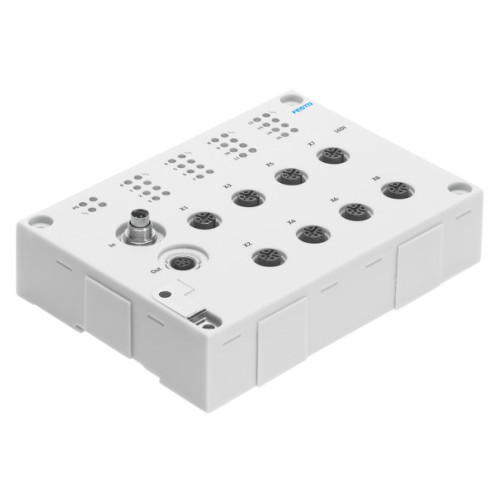

CP-E16-M12-EL Input module

Manufacturer's No: CP-E16-M12-EL     Manufacturer: Festo
CP-E16-M12-EL Input module

Availability On Request

£349.74
  • Input module CP-E16-M12-EL
  • Mounting: With through-hole or H-rail
  • Ambient temperature: -5°C to 50°C
  • Storage temperature: -20°C to 70°C
  • Degree of protection: IP65 and IP67
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • CE mark: EU EMC Directive and EU RoHS Directive
  • UKCA marking: UK instructions for EMC and UK RoHS instructions
  • KC mark: KC-EMV

Read more

  • Approvals: RCM trademark, c UL us listed (OL)
  • RoHS-compliant materials
  • Material: PA-reinforced housing and cover
  • LED display: 16 Channel status, 2 Module diagnostics, 4 Group diagnostics
  • Max. number of inputs: 16
  • Operational voltage range DC: 18V to 30V, Nominal operating voltage DC: 24V
  • Operating voltage DC load voltage: 24V, Residual ripple load voltage: 4Vpp
  • Characteristic for inputs: IEC1131-T2
  • Switching level: Signal 0: <= 6V, Signal 1: >= 8.6V
  • Switching logic for inputs: PNP (positive switching)
  • Input debounce time: 3ms (0.5ms, 10ms, 20ms, parameterizable)
  • Max. total current per module: 0.7A
  • Isolation channel - channel: no
  • Fuse protection (short circuit): Internal electronic fuse protection for each group


Product

Manufacturer Material ID -
CP-E16-M12-EL
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
BG
UNSPSC -
30102206
Festo

Availability On Request

£349.74
