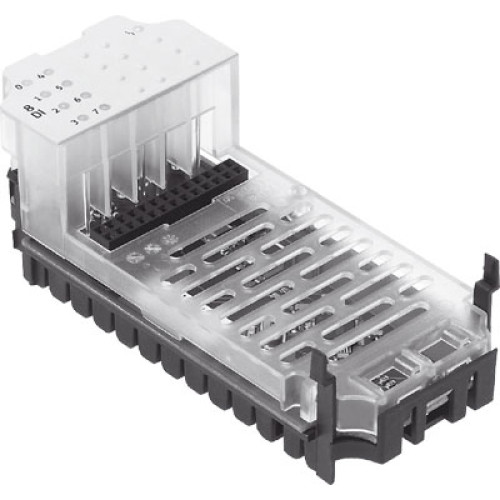

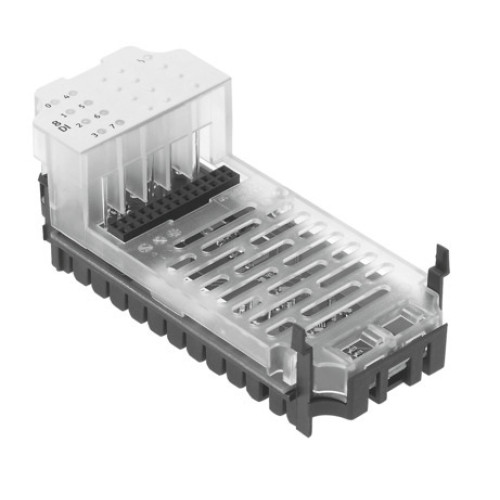

CPX-8DE Input module

Manufacturer's No: CPX-8DE     Manufacturer: Festo
CPX-8DE Input module

Availability Available to order

£102.06
  • Input module CPX-8DE for modular electrical terminal CPX
  • Dimensions: 50 mm x 107 mm x 50 mm (including interlinking block and connection technology)
  • 8 digital inputs with short circuit/overload diagnosis per channel
  • Parameters for configuration: Input debounce time, Signal extension time, Behaviour after short circuit, Module monitoring
  • LED displays: 1 group diagnostics, 8 channel status
  • Product weight: 39 g
  • Operational voltage range DC: 18 V to 30 V, Nominal operating voltage DC: 24 V
  • Intern power consumption at nominal operating voltage: Typ. 15 mA
  • Switching level: Signal 0: <= 5 V, Signal 1: >= 11 V
  • Switching logic for inputs: PNP (positive switching)

Read more

  • Input debounce time: 3 ms (0.1 ms, 10 ms, 20 ms, parameterizable)
  • Max. residual current of inputs per module: 1 A
  • Isolation channel - channel: no, Isolation channel - internal bus: no
  • Fuse protection (short circuit): Internal electronic fuse per module
  • Ambient temperature: -5°C to 50°C, Storage temperature: -20°C to 70°C
  • Degree of protection: Dependent on the manifold block, Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Material housing: PA-reinforced, PC


Product

Manufacturer Material ID -
CPX-8DE
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
UNSPSC -
32151705
Festo

Availability Available to order

£102.06
