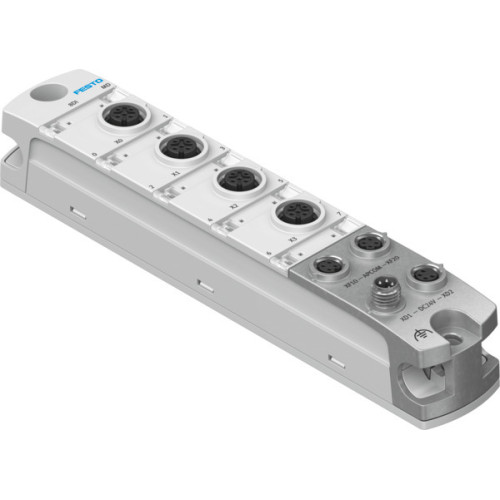

CPX-AP-I-8DI-M12-5P Digital input module

Manufacturer's No: CPX-AP-I-8DI-M12-5P     Manufacturer: Festo
CPX-AP-I-8DI-M12-5P Digital input module

Availability On Request

£136.63
  • Digital input module CPX-AP-I-8DI-M12-5P
  • Dimensions: 30 x 170 x 35 mm
  • Weight: 126 g
  • Ambient temperature: -20°C to 50°C
  • Storage temperature: -40°C to 70°C
  • Relative air humidity: 5% to 95% (non-condensing)
  • Degree of protection: IP65, IP67
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • Max. cable length: 30 m for inputs, 50 m for system communication
  • LABS (PWIS) conformity: VDMA24364-B2-L

Read more

  • Cleanroom class: Element installed statically, no meaningful evaluation possible according to ISO 14644-1
  • Certifications: CE mark, UKCA marking, KC mark, RCM trademark, c UL us listed (OL)
  • Materials: RoHS-compliant, housing made of PA, PC, die-cast zinc (nickel-plated), o-ring made of FPM
  • Diagnostics via LED: Per module (status per channel)
  • Internal communication diagnostics: Short circuit/overload in sensor supply, electronics/sensors overvoltage, undervoltage
  • Communication interface: System communication XF10 IN / XF20 OUT, 2x socket, M8x1, D-coded
  • Power supply: Incoming electronics/sensors and load, plugs, M8x1, A-coded
  • Power transmission: Outgoing electronics/sensors and load, socket, M8x1, A-coded
  • Operating voltage: 24 V, ± 25% permissible voltage fluctuations
  • Max. power supply: 2 x 4 A (external fuse required)
  • Intrinsic current consumption: Typically 32 mA
  • Power failure bridging: 10 ms
  • Reverse polarity protection: Yes
  • Electrical connection input: Digital input, 4x socket, M12x1, A-coded
  • Number of inputs: 8
  • Switching level: Signal 0: <= 5 V, Signal 1: >= 11 V
  • Switching logic for inputs: PNP (positive switching), 2-wire sensors, 3-wire sensors
  • Input debounce time: 0.1 ms, 3 ms, 10 ms, 20 ms
  • Fuse protection of inputs: Internal electronic fuse per module
  • Max. residual current of inputs per module: 1.8 A
  • Electrical isolation of inputs: No (between channels), Yes (between channel - internal communication)


Product

Manufacturer Material ID -
CPX-AP-I-8DI-M12-5P
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
BG
UNSPSC -
39121521
