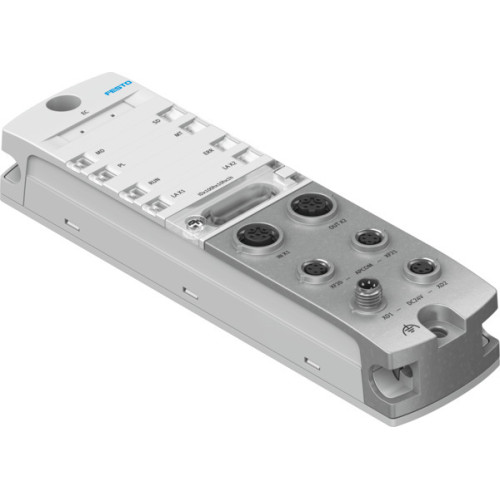

CPX-AP-I-EC-M12 EtherCAT interface

Manufacturer's No: CPX-AP-I-EC-M12     Manufacturer: Festo
CPX-AP-I-EC-M12 EtherCAT interface

Availability Back Order

£409.88
  • EtherCAT interface CPX-AP-I-EC-M12
  • Dimensions: 45 x 170 x 35 mm
  • Max. number of modules: 80
  • Weight: 186 g
  • Ambient temperature: -20°C to 50°C
  • Storage temperature: -40°C to 70°C
  • Relative air humidity: 5% to 95% non-condensing
  • Degree of protection: IP65, IP67 (Unused connections sealed)
  • Corrosion resistance class: 1 (Low corrosion stress)
  • Max. cable length for system communication: 50 m

Read more

  • Materials: Housing - PA, PC, Die-cast zinc, nickel-plated; O-ring - FPM
  • Diagnostics via LED: Module, EtherCAT® RUN, Power supply, Load power supply, System diagnostics, Service required
  • Diagnostics via bus: Various error conditions
  • Fieldbus interface: Ethernet, EtherCAT® protocol
  • Field bus connection: 2x socket, M12x1, D-coded
  • Field bus interface: Electrical isolation, 100 Mbit/s transmission rate
  • Max. address volume: 2048 AD (inputs, outputs)
  • Configuration support: ESI file
  • Communication interface: System communication XF20 OUT / XF21 OUT, 2x socket, M8x1, D-coded
  • Power supply: Incoming electronics/sensors and load, Plugs, M8x1, A-coded
  • Power transmission: Outgoing electronics/sensors and load, Socket, M8x1, A-coded
  • Operating voltage: SELV/PELV fixed power supplies required, 24 V DC
  • Voltage fluctuation tolerance: ± 25%
  • Max. power supply: 2 x 4 A (external fuse required)
  • Current consumption: Electronics/sensors - 90 mA, Load - 5 mA
  • Power failure bridging: 10 ms
  • Reverse polarity protection: Yes


Product

Manufacturer Material ID -
CPX-AP-I-EC-M12
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
BG
UNSPSC -
32151701
