8086610

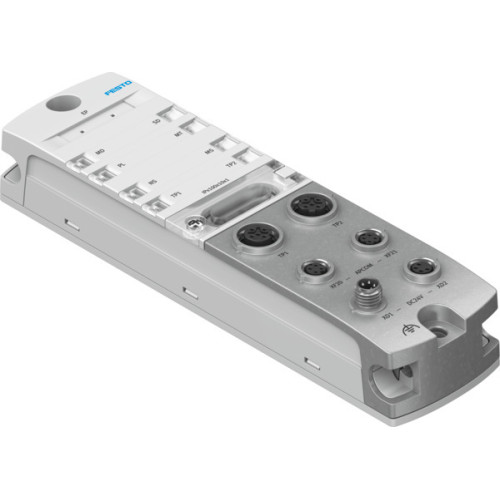

CPX-AP-I-EP-M12 EtherNet/IP interface

Manufacturer's No: CPX-AP-I-EP-M12     Manufacturer: Festo
CPX-AP-I-EP-M12 EtherNet/IP interface

Availability On Request

£409.88
  • EtherNet/IP interface CPX-AP-I-EP-M12
  • Dimensions: 45 x 170 x 35 mm
  • Max. number of modules: 80
  • Product weight: 194 g
  • Ambient temperature: -20°C to 50°C
  • Storage temperature: -40°C to 70°C
  • Relative air humidity: 5% to 95% non-condensing
  • Degree of protection: IP65 and IP67 (Unused connections sealed)
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • Max. cable length for system communication: 50 m

Read more

  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Cleanroom class: Element installed statically, no meaningful evaluation possible according to ISO 14644-1
  • CE mark and UKCA marking to EU and UK EMC Directives respectively
  • KC mark: KC-EMV
  • Approvals: RCM trademark, c UL us listed (OL)
  • Certificate issuing authority: UL E239998
  • RoHS-compliant materials: PA, PC, Die-cast zinc, nickel-plated, FPM
  • Diagnostics via LED for module, network status, power supply, load power supply, system diagnostics, service required
  • Diagnostics via bus for various error conditions
  • Fieldbus interface: Ethernet, EtherNet/IP protocol
  • Fieldbus connection type: 2x socket, M12x1, D-coded to EN 61076-2-101
  • Fieldbus transmission rate: 100 Mbit/s
  • Max. address volume for inputs and outputs: 1324 AD
  • Configuration support: EDS file
  • Communication interface for system communication XF20 OUT / XF21 OUT
  • Communication interface connection type: 2x socket, M8x1, D-coded according to EN 61076-2-114
  • Communication interface protocol: AP, shielded
  • Power supply for electronics/sensors and load via plugs, M8x1, A-coded to EN 61076-2-104
  • Power transmission for electronics/sensors and load via socket, M8x1, A-coded to EN 61076-2-104
  • Operating voltage: SELV/PELV fixed power supplies required, 24 V DC
  • Permissible voltage fluctuation: ± 25%
  • Max. power supply: 2 x 4 A (external fuse required)
  • Intrinsic current consumption at nominal operating voltage: Typically 90 mA for electronics/sensors, 5 mA for load
  • Power failure bridging: 10 ms
  • Reverse polarity protection: Yes


Product

Manufacturer Material ID -
CPX-AP-I-EP-M12
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
BG
UNSPSC -
32151701
Festo

Availability On Request

£409.88
