CPX-AP-I-PN-M12 PROFINET Interface

Manufacturer's No: CPX-AP-I-PN-M12     Manufacturer: Festo

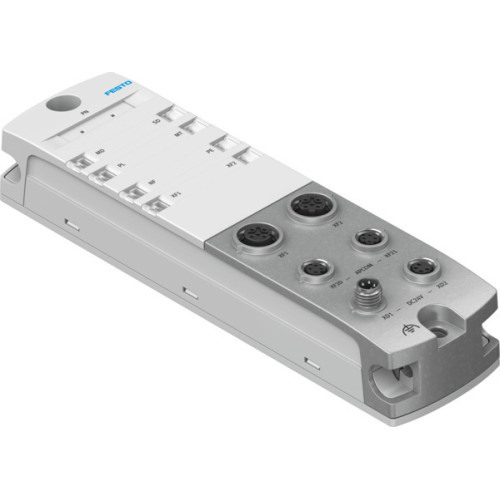

CPX-AP-I-PN-M12 PROFINET Interface

Availability Back Order

£409.88
  • CPX-AP-I-PN-M12 PROFINET Interface
  • Dimensions: 45 x 170 x 35 mm
  • Max. number of modules: 80
  • Product weight: 186 g
  • Ambient temperature: -20°C to 50°C
  • Storage temperature: -40°C to 70°C
  • Relative air humidity: 5% to 95% non-condensing
  • Degree of protection: IP65, IP67 (Unused connections sealed)
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • Max. cable length for system communication: 50 m

Read more

  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Cleanroom class: Element installed statically, no meaningful evaluation possible according to ISO 14644-1
  • CE mark: To EU EMC Directive
  • UKCA marking: To UK instructions for EMC
  • KC mark: KC-EMV
  • Approval: RCM trademark, c UL us listed (OL)
  • Certificate issuing authority: UL E239998
  • RoHS-compliant materials: PA, PC, Die-cast zinc, nickel-plated, FPM
  • Diagnostics via LED: Per module, Network fault, Power supply, electronics/sensors, Load power supply, System diagnostics, Service required
  • Diagnostics via bus: APDD invalid, Load switch-off, Communication with AP module interrupted, Electronics/sensors overvoltage, Load overvoltage, Electronics/sensors undervoltage, Load undervoltage, Module error, Output short circuit/overload, Short circuit/overload in sensor supply, Undervoltage in load supply
  • Fieldbus interface: Ethernet
  • Field bus protocol: PROFINET IRT, PROFINET RT
  • Fieldbus interface function: Bus connection incoming/outgoing
  • Field bus connection type: 2x socket, M12x1, D-coded to EN 61076-2-101
  • Field bus connection pattern: 4
  • Field bus interface electrical isolation: Yes
  • Field bus interface transmission rate: 100 Mbit/s
  • Max. address volume for inputs and outputs: 1024 AD
  • Configuration support: GSDML file
  • Communication interface function: System communication XF20 OUT / XF21 OUT
  • Communication interface connection type: 2x socket, M8x1, D-coded according to EN 61076-2-114
  • Communication interface number of pins/wires: 4
  • Communication interface protocol: AP, Shielding: Yes
  • Power supply function: Incoming electronics/sensors and load
  • Power supply connection type: Plugs, M8x1, A-coded to EN 61076-2-104
  • Power supply number of pins/wires: 4
  • Power transmission function: Outgoing electronics/sensors and load
  • Power transmission connection type: Socket, M8x1, A-coded to EN 61076-2-104
  • Power transmission number of pins/wires: 4
  • Operating voltage: SELV/PELV fixed power supplies required, Note voltage drop
  • Nominal operating voltage DC of load/electronics/sensors: 24 V
  • Permissible voltage fluctuation: ± 25%
  • Max. power supply: 2 x 4 A (external fuse required)
  • Intrinsic current consumption: Typically 80 mA for electronics/sensors, 5 mA for load
  • Power failure bridging: 10 ms
  • Reverse polarity protection: Yes

Accessories



Product

Manufacturer Material ID -
CPX-AP-I-PN-M12
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
BG
UNSPSC -
32151705
