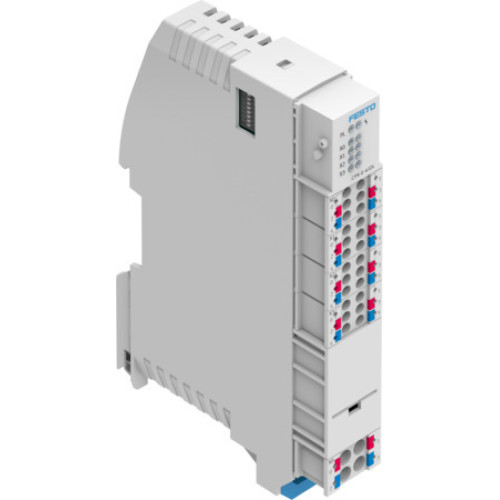

CPX-E-4IOL IO-Link master module

Manufacturer's No: CPX-E-4IOL     Manufacturer: Festo
CPX-E-4IOL IO-Link master module

Availability On Request

£278.45
  • IO-Link master module CPX-E-4IOL
  • Dimensions: 18.9 x 76.6 x 124.3 mm
  • Mounting: With H-rail, Vertical or Horizontal
  • Weight: 96 g
  • Ambient Temperature: -5 to 50°C
  • Storage Temperature: -20 to 70°C
  • Humidity: 95%, Non-condensing
  • Protection: IP20, Corrosion resistance class CRC: 0
  • Vibration Resistance: Transport application test level 1
  • Shock Resistance: Shock test level 1

Read more

  • Protection: PELV
  • Diagnostics: LED for errors and status, Bus for various errors
  • Outputs: 8, Max. address volume: 1 AD
  • Power Supply: 24 V DC, ± 25% voltage fluctuation
  • Current Consumption: 50 mA for electronics/sensors, 15 mA for load
  • Reverse Polarity Protection: 24 V load and sensor supply
  • Switching Logic: PNP
  • Max. Residual Current: 4 A per module
  • Fuse Protection: Internal electronic fuse per channel and module
  • Electrical Connection for IO-Link: 4x terminal strip, Spring-loaded terminal, 6 pins/wires
  • IO-Link Communication: C/Q green LED, 4 ports, Protocol version: Master V 1.1
  • Communication Mode: SIO, COM1 (4.8 kBd), COM2 (38.4 kBd), COM3 (230.4 kBd)
  • Process Data Length: Parameterizable, 8-32 bytes
  • Min. Cycle Time: Dependent on connected IO-Link device's cycle time


Product

Manufacturer Material ID -
CPX-E-4IOL
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
UNSPSC -
32151705
Festo

Availability On Request

£278.45
