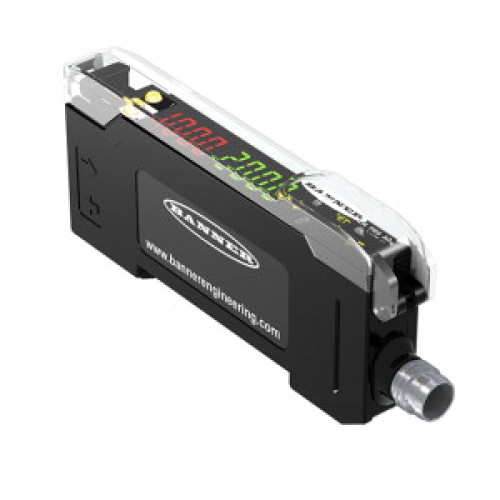

DF-G1 Dual Display Fiber Amplifier Light Receiver, Range: Depends on Fiber and light source, Input 10-30 V dc, Output: 1 PNP, 4-pi

Manufacturer's No: DF-G1-PR-Q7     Manufacturer: Turck Banner
DF-G1 Dual Display Fiber Amplifier Light Receiver, Range: Depends on Fiber and light source, Input 10-30 V dc, Output: 1 PNP, 4-pin M8 Integral QD

Availability On Request

£250.43
  • Type: Photoelectric Sensor for Plastic Fibers
  • Operating Voltage: 10-30 VDC
  • Light Sensing Type: Ambient
  • Emitter Type: Passive (no emitter)
  • Optical Fiber Type: PI
  • Connector Type: Male, M8 x 1; 4-pin
  • Programming: Teach cable or multi-function button
  • Output: PNP
  • Operation Mode: Light/Dark


Product

Manufacturer Material ID -
DF-G1-PR-Q7
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP50

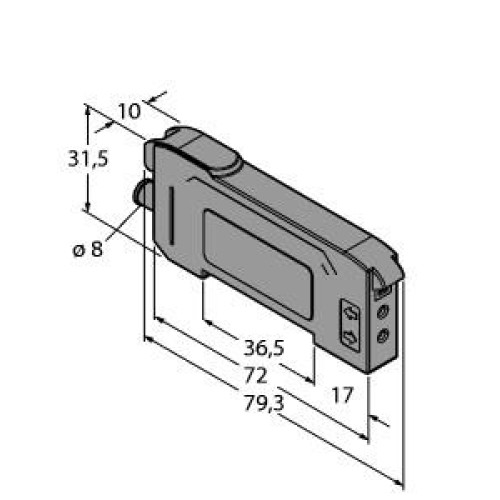

Height amplifier -
33 Millimetre
Housing material -
Plastic
Length amplifier -
79.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Type of electric connection -
Connector M8
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Width amplifier -
10 Millimetre
Turck Banner

Availability On Request

£250.43
