3087709

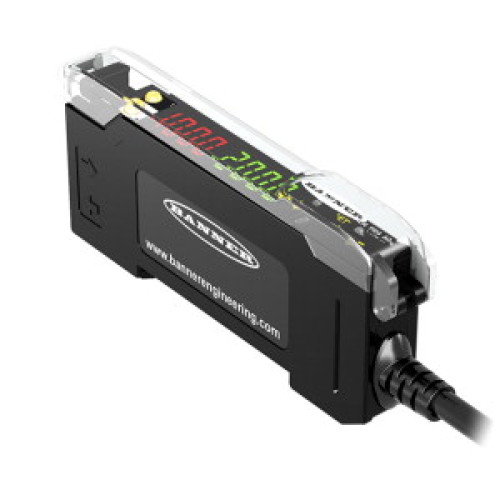

DF-G3 Long IR Beam Water Detector Dual Display Fiber Amplifier, Range: Depends on Fiber, Input 12-30 V dc, Outputs: 1 PNP and 0-10

Manufacturer's No: DF-G3LIR-PU-Q5     Manufacturer: Turck Banner
DF-G3 Long IR Beam Water Detector Dual Display Fiber Amplifier, Range: Depends on Fiber, Input 12-30 V dc, Outputs: 1 PNP and 0-10 V dc Analog, 150 (6 in) 5-pin M12 PVC Pigtail QD

Availability On Request

£383.81
  • Photoelectric sensor for plastic fibers
  • Long-wave infrared sensor at 1450 nm for water detection
  • Operating voltage: 12-30 VDC
  • Cable length: 0.15 m with male end M12 x 1
  • PNP output with light/dark switching
  • Analog output range: 0-10 V
  • Programming via teach cable or multi-function button


Product

Manufacturer Material ID -
DF-G3LIR-PU-Q5
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP50
Height amplifier -
33 Millimetre
Housing material -
Plastic
Length amplifier -
79.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Width amplifier -
10 Millimetre
Turck Banner

Availability On Request

£383.81
