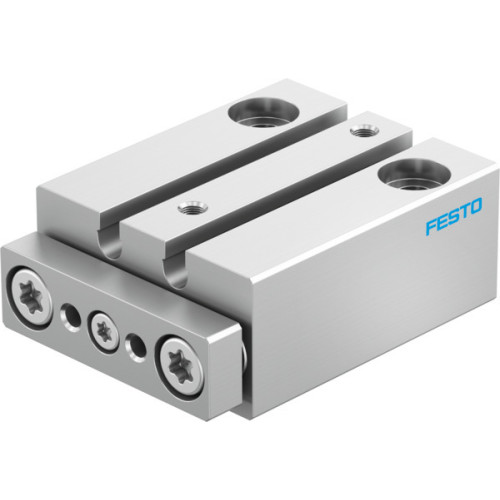

DFM-10-20-P-A-GF Guided drive

Manufacturer's No: DFM-10-20-P-A-GF     Manufacturer: Festo
DFM-10-20-P-A-GF Guided drive

Availability On Request

£115.56
  • Guided drive DFM-10-20-P-A-GF with integrated guide
  • Stroke: 20 mm, Piston diameter: 10 mm
  • Centre of gravity distance from working load to yoke plate: 10 mm
  • Operating pressure: 0.15 MPa, 0.8 MPa, 1.5 bar, 8 bar
  • Max. speed: 1.7 m/s
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: -10°C to 60°C
  • Max. permissible torque load: 0.034 Nm

Read more

  • Theoretical force at 0.6 MPa (6 bar, 87 psi): 40 N (return stroke), 47 N (advance stroke)
  • Moving mass: 21 g, Product weight: 60.5 g
  • Pneumatic connection: M3
  • Material cover: High-alloy stainless steel
  • Material seals: NBR, Material dynamic seals: HNBR
  • Material end plate: Anodised wrought aluminium alloy
  • Material guide rod: High-alloy stainless steel
  • Material housing: Anodised wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DFM-10-20-P-A-GF
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
