DFM-100-100-P-A-KF Guided drive

Manufacturer's No: DFM-100-100-P-A-KF     Manufacturer: Festo

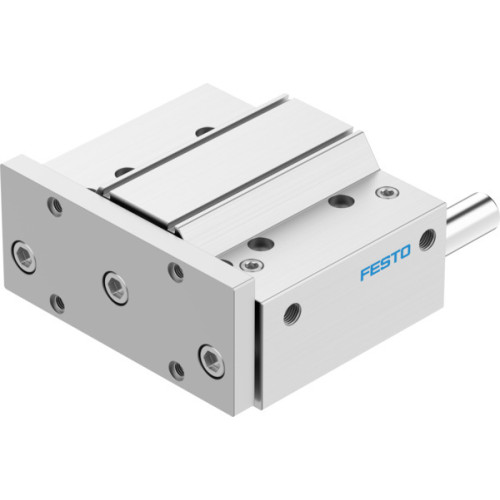

DFM-100-100-P-A-KF Guided drive

Availability On Request

£1,131.02
  • Guided drive DFM-100-100-P-A-KF with integrated guide
  • Stroke: 100 mm, Piston diameter: 100 mm
  • Centre of gravity distance from working load to yoke plate: 125 mm
  • Operating mode of drive unit: Yoke, Cushioning: Flexible cushioning rings/plates at both ends
  • Max. speed: 0.4 m/s, Mode of operation: Double-acting
  • Operating pressure: 0.05 MPa, 1 MPa, 0.5 bar, 10 bar
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], Lubricated operation possible
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • Ambient temperature: -5°C to 60°C
  • Max. force Fy: 3043 N, Max. force Fy static: 5400 N

Read more

  • Max. force Fz: 3043 N, Max. force Fz static: 5400 N
  • Max. moment Mx: 286.02 Nm, Max. torque Mx static: 507.6 Nm
  • Max. moment My: 155.16 Nm, Max. torque My static: 275.4 Nm
  • Max. moment Mz: 155.16 Nm, Max. torque Mz static: 275.4 Nm
  • Max. permissible torque load Mx: 60.05 Nm
  • Max. effective load at defined distance: 480 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): 4418 N (return stroke), 4712 N (advance stroke)
  • Moving mass: 7406 g, Product weight: 14587 g
  • Centre of gravity of moving mass as a function of stroke: 75.2 mm
  • Pneumatic connection: G3/8
  • Material: Cover - Wrought aluminium alloy, Seals - NBR, Housing - Wrought aluminium alloy, Piston rod - High-alloy stainless steel


Product

Manufacturer Material ID -
DFM-100-100-P-A-KF
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
