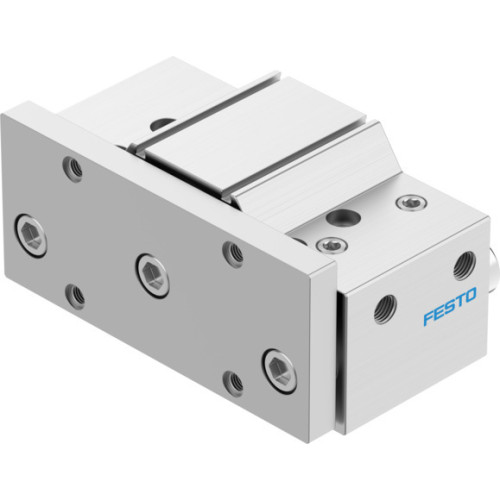

DFM-100-25-P-A-GF Guided drive

Manufacturer's No: DFM-100-25-P-A-GF     Manufacturer: Festo
DFM-100-25-P-A-GF Guided drive

Availability On Request

£739.04
  • Guided drive DFM-100-25-P-A-GF with integrated guide
  • Stroke: 25 mm
  • Piston diameter: 100 mm
  • Centre of gravity distance from working load to yoke plate: 125 mm
  • Operating mode of drive unit: Yoke
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Max. speed: 0.4 m/s
  • Operating pressure: 0.05 MPa, 1 MPa, 0.5 bar, 10 bar
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress

Read more

  • Ambient temperature: -20°C to 80°C
  • Max. force Fy: 3640 N
  • Max. force Fz: 3640 N
  • Max. moment Mx: 342.2 Nm
  • Max. moment My: 111 Nm
  • Max. moment Mz: 111 Nm
  • Max. permissible torque load Mx: 76.99 Nm
  • Moving mass: 6301 g
  • Product weight: 11000 g
  • Pneumatic connection: G3/8
  • Material cover: Wrought aluminium alloy
  • Material seals: NBR
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DFM-100-25-P-A-GF
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£739.04
