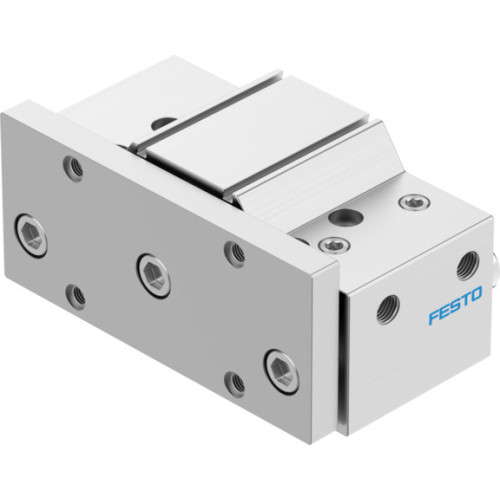

DFM-100-25-P-A-KF Guided drive

Manufacturer's No: DFM-100-25-P-A-KF     Manufacturer: Festo
DFM-100-25-P-A-KF Guided drive

Availability On Request

£828.46
  • Guided drive DFM-100-25-P-A-KF with integrated guide
  • Stroke: 25 mm, Piston diameter: 100 mm
  • Centre of gravity distance from working load to yoke plate: 125 mm
  • Operating pressure: 0.05 MPa, 1 MPa, 0.5 bar, 10 bar
  • Max. speed: 0.4 m/s, Mode of operation: Double-acting
  • Max. force Fy: 3043 N, Max. force Fz: 3043 N
  • Max. moment Mx: 286.02 Nm, Max. torque Mx static: 507.6 Nm
  • Ambient temperature: -5°C to 60°C
  • Material cover: Wrought aluminium alloy, Material seals: NBR
  • Pneumatic connection: G3/8, RoHS-compliant materials


Product

Manufacturer Material ID -
DFM-100-25-P-A-KF
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£828.46
