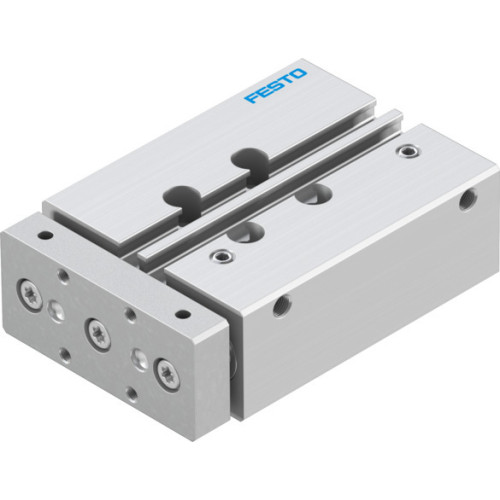

DFM-12-40-P-A-KF Guided drive

Manufacturer's No: DFM-12-40-P-A-KF     Manufacturer: Festo
DFM-12-40-P-A-KF Guided drive

Availability On Request

£279.65
  • Guided drive DFM-12-40-P-A-KF with integrated guide
  • Stroke: 40 mm
  • Piston diameter: 12 mm
  • Centre of gravity distance from working load to yoke plate: 25 mm
  • Operating pressure: 0.2 MPa, 1 MPa, 2 bar, 10 bar
  • Max. speed: 0.8 m/s
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Max. force Fy: 375 N, Max. force Fz: 375 N

Read more

  • Max. moment Mx: 7.68 Nm, Max. moment My: 3.56 Nm, Max. moment Mz: 3.56 Nm
  • Moving mass: 196 g, Product weight: 480 g
  • Pneumatic connection: M5
  • Material cover: Wrought aluminium alloy, Material seals: NBR, Material housing: Wrought aluminium alloy, Material piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DFM-12-40-P-A-KF
Net Weight -
0.46kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£279.65
