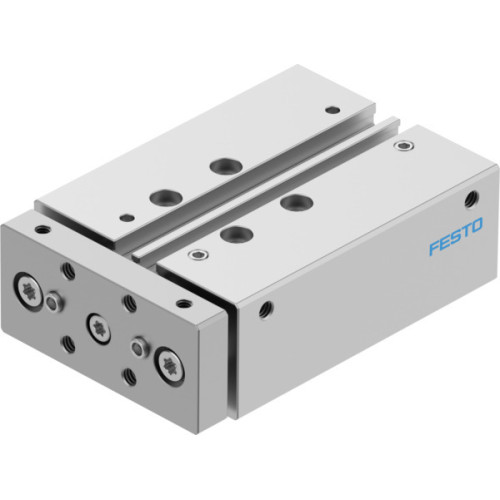

DFM-16-30-B-PPV-A-KF Guided drive

Manufacturer's No: DFM-16-30-B-PPV-A-KF     Manufacturer: Festo
DFM-16-30-B-PPV-A-KF Guided drive

Availability On Request

£386.51
  • Guided drive with stroke of 30mm and piston diameter of 16mm
  • Operating mode: Yoke with pneumatic cushioning adjustable at both ends
  • Recirculating ball bearing guide for smooth operation
  • Position detection via proximity switch
  • Double-acting operation with operating pressure of 0.2MPa and 1MPa
  • Suitable for compressed air to ISO 8573-1:2010 [7:4:4], with lubricated operation possible
  • Corrosion resistance class CRC: 0 for no corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature range from -5°C to 60°C

Read more

  • Impact energy in end positions: 0.15J
  • Theoretical force at 0.6MPa: 104N for return stroke and 121N for advance stroke
  • Pneumatic connection: M5
  • Materials: Wrought aluminium alloy cover and housing, NBR seals, high-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DFM-16-30-B-PPV-A-KF
Net Weight -
0.64kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£386.51
