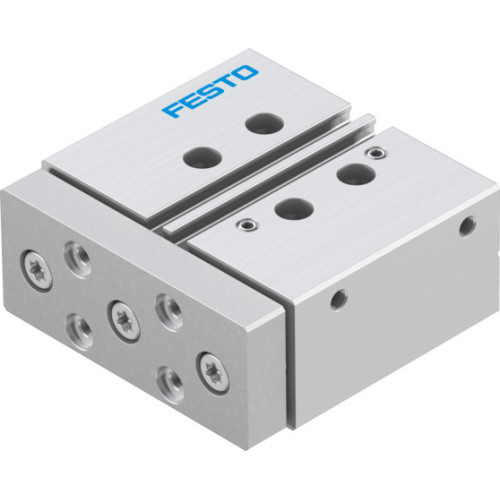

DFM-20-25-P-A-GF Guided drive

Manufacturer's No: DFM-20-25-P-A-GF     Manufacturer: Festo
DFM-20-25-P-A-GF Guided drive

Availability On Request

£260.39
  • Guided drive DFM-20-25-P-A-GF with integrated guide
  • Stroke: 25 mm, Piston diameter: 20 mm
  • Operating mode: Yoke, Cushioning: Flexible cushioning rings/plates at both ends
  • Max. speed: 0.8 m/s, Mode of operation: Double-acting
  • Operating pressure: 0.2 MPa, 1 MPa, 2 bar, 10 bar
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: -20°C to 80°C
  • Max. force: 354.7 N, Max. moment: 10.29 Nm

Read more

  • Max. torque load: 1.47 Nm, Max. effective load: 28 N
  • Moving mass: 400 g, Product weight: 806 g
  • Pneumatic connection: M5
  • Material: RoHS-compliant, Wrought aluminium alloy, NBR seals, High-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DFM-20-25-P-A-GF
Net Weight -
0.81kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£260.39
