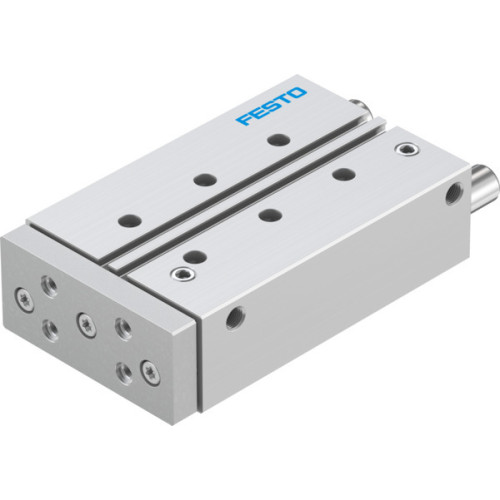

DFM-25-100-P-A-GF Guided drive

Manufacturer's No: DFM-25-100-P-A-GF     Manufacturer: Festo
DFM-25-100-P-A-GF Guided drive

Availability On Request

£338.83
  • Guided drive DFM-25-100-P-A-GF with integrated guide
  • Stroke: 100 mm, Piston diameter: 25 mm
  • Centre of gravity distance from working load to yoke plate: 50 mm
  • Operating pressure: 0.15 MPa, 1 MPa, 1.5 bar, 10 bar
  • Max. speed: 0.8 m/s, Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: -20°C to 80°C
  • Max. force Fy, Fz: 810.7 N, Max. moment Mx, My, Mz: 27.56 Nm, 19.46 Nm

Read more

  • Max. permissible torque load Mx: 3.64 Nm
  • Moving mass: 979 g, Product weight: 2225 g
  • Pneumatic connection: G1/8
  • Material cover: Wrought aluminium alloy, Seals: NBR, Housing: Wrought aluminium alloy, Piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DFM-25-100-P-A-GF
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£338.83
