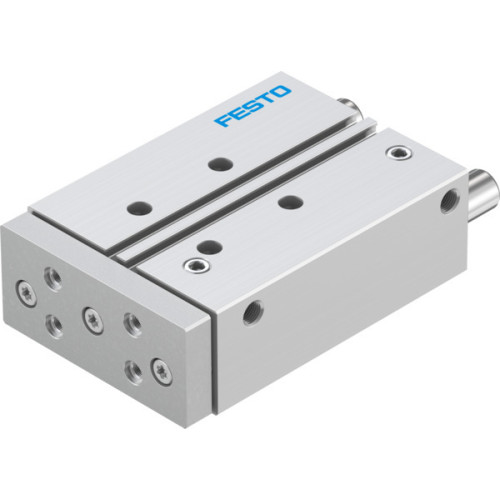

DFM-25-80-P-A-GF Guided drive

Manufacturer's No: DFM-25-80-P-A-GF     Manufacturer: Festo
DFM-25-80-P-A-GF Guided drive

Availability On Request

£325.13
  • Guided drive DFM-25-80-P-A-GF with integrated guide
  • Stroke: 80 mm, Piston diameter: 25 mm
  • Centre of gravity distance from working load to yoke plate: 50 mm
  • Operating pressure: 0.15 MPa, 1 MPa, 1.5 bar, 10 bar
  • Max. speed: 0.8 m/s, Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: -20°C to 80°C
  • Max. force Fy, Fz: 810.7 N, Max. moment Mx, My, Mz: 27.56 NM, 19.46 NM

Read more

  • Max. permissible torque load Mx: 4.17 NM
  • Moving mass: 904 g, Product weight: 1993 g
  • Pneumatic connection: G1/8
  • Material cover, housing: Wrought aluminium alloy
  • Material seals: NBR, Material piston rod: High-alloy stainless steel
  • Position detection: Via proximity switch
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Impact energy in end positions: 0.3 Nm
  • Max. effective load dependent upon stroke at defined distance: 96 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): 247 N (return stroke), 295 N (advance stroke)
  • Alternative connections: See product drawing
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
DFM-25-80-P-A-GF
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£325.13
