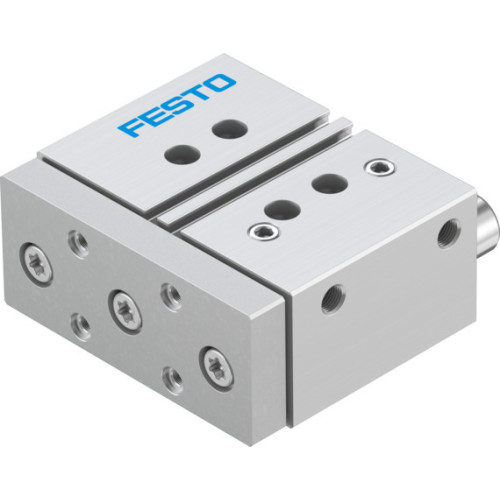

DFM-32-30-P-A-GF Guided drive

Manufacturer's No: DFM-32-30-P-A-GF     Manufacturer: Festo
DFM-32-30-P-A-GF Guided drive

Availability On Request

£335.31
  • Guided drive DFM-32-30-P-A-GF with integrated guide
  • Stroke: 30 mm, Piston diameter: 32 mm
  • Centre of gravity distance from working load to yoke plate: 50 mm
  • Operating pressure: 0.15 MPa, 1 MPa, 1.5 bar, 10 bar
  • Max. speed: 0.8 m/s, Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: -20°C to 80°C
  • Max. force Fy: 1227 N, Max. force Fz: 1227 N

Read more

  • Max. moment Mx: 47.84 Nm, Max. moment My: 24.53 Nm, Max. moment Mz: 24.53 Nm
  • Max. permissible torque load Mx: 9.53 Nm
  • Moving mass: 1077 g, Product weight: 1937 g
  • Pneumatic connection: G1/8
  • Material cover: Wrought aluminium alloy, Material seals: NBR, Material housing: Wrought aluminium alloy, Material piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DFM-32-30-P-A-GF
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£335.31
