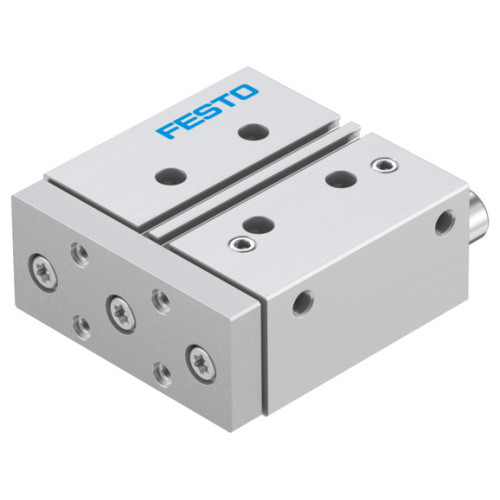

DFM-32-50-P-A-GF Guided drive

Manufacturer's No: DFM-32-50-P-A-GF     Manufacturer: Festo
DFM-32-50-P-A-GF Guided drive

Availability Back Order

£355.85
  • Guided drive DFM-32-50-P-A-GF with integrated guide
  • Stroke: 50 mm, Piston diameter: 32 mm
  • Operating mode: Yoke, Cushioning: Flexible cushioning rings/plates at both ends
  • Max. speed: 0.8 m/s, Mode of operation: Double-acting
  • Operating pressure: 0.15 MPa, 1 MPa, 1.5 bar, 10 bar
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: -20°C to 80°C
  • Max. force: Fy 1227 N, Fz 1227 N

Read more

  • Max. moment: Mx 47.84 Nm, My 24.53 Nm, Mz 24.53 Nm
  • Max. permissible torque load: Mx 7.83 Nm
  • Moving mass: 1191 g, Product weight: 2254 g
  • Pneumatic connection: G1/8
  • Material: Cover - Wrought aluminium alloy, Seals - NBR, Housing - Wrought aluminium alloy, Piston rod - High-alloy stainless steel

Accessories

PUSH IN FITTING (PK 10)

Product Code - 186096
Price £2.38
Back Order

PUN-H-6X1-BL 6MM PLASTIC TUBING

Product Code - 197384
Price £1.09
Back Order

QS-G1/8-6-I PUSH-IN FITTING

Product Code - 186107
Price £2.72
Back Order

QSL-G1/8-6 PUSH-IN L-FITTING

Product Code - 186117
Price £3.66
Back Order

PUN-H-6X1-NT 6MM PLASTIC TUBING

Product Code - 197377
Price £1.09
Back Order


Product

Manufacturer Material ID -
DFM-32-50-P-A-GF
Net Weight -
2.24kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
27131700
Festo

Availability Back Order

£355.85
