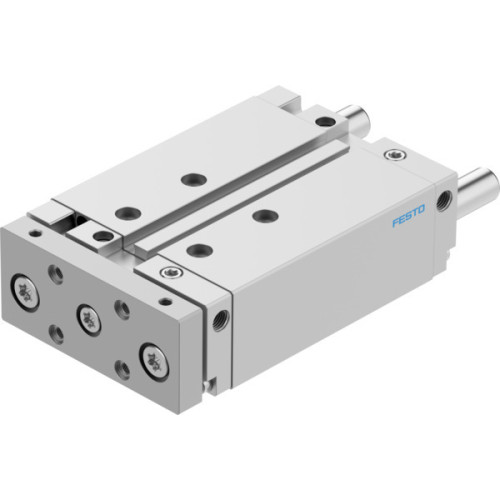

DFM-32-80-B-PPV-A-GF Guided drive

Manufacturer's No: DFM-32-80-B-PPV-A-GF     Manufacturer: Festo
DFM-32-80-B-PPV-A-GF Guided drive

Availability Back Order

£502.65
  • Guided drive DFM-32-80-B-PPV-A-GF with a stroke of 80mm and a piston diameter of 32mm
  • Operating mode: Yoke drive unit with pneumatic cushioning adjustable at both ends
  • Mounting position: Optional with a plain-bearing guide for guidance
  • Position detection via proximity switch
  • Double-acting operation with an operating pressure range from 0.15 MPa to 10 bar
  • Operating medium: Compressed air meeting ISO 8573-1:2010 [7:4:4] standards
  • Lubricated operation possible with CRC corrosion resistance class 2
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L and Cleanroom class 7 according to ISO 14644-1
  • Ambient temperature range from -20°C to 80°C
  • Impact energy in end positions: 0.4 J with theoretical forces of 415N (return stroke) and 482N (advance stroke) at 0.6 MPa

Read more

  • Pneumatic connection: G1/8 with RoHS-compliant materials including wrought aluminium alloy cover, NBR seals, and high-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DFM-32-80-B-PPV-A-GF
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability Back Order

£502.65
