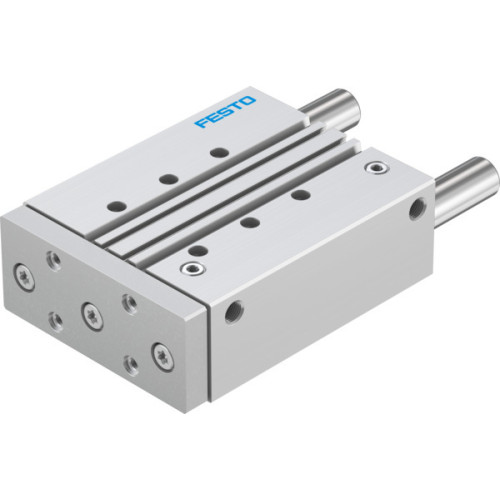

DFM-50-125-P-A-GF Guided drive

Manufacturer's No: DFM-50-125-P-A-GF     Manufacturer: Festo
DFM-50-125-P-A-GF Guided drive

Availability On Request

£521.50
  • Guided drive DFM-50-125-P-A-GF with integrated guide
  • Stroke: 125 mm, Piston diameter: 50 mm
  • Centre of gravity distance from working load to yoke plate: 50 mm
  • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar
  • Max. speed: 0.6 m/s, Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Ambient temperature: -20°C to 80°C
  • Max. force Fy, Fz: 1533 N, Max. moment Mx, My, Mz: 84.33 Nm, 69.77 Nm
  • Max. permissible torque load Mx: 14.47 Nm

Read more

  • Theoretical force at 0.6 MPa, return stroke: 1057 N, advance stroke: 1178 N
  • Moving mass: 3249 g, Product weight: 6302 g
  • Pneumatic connection: G1/4
  • Material: Cover - Wrought aluminium alloy, Seals - NBR, Housing - Wrought aluminium alloy, Piston rod - High-alloy stainless steel


Product

Manufacturer Material ID -
DFM-50-125-P-A-GF
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£521.50
