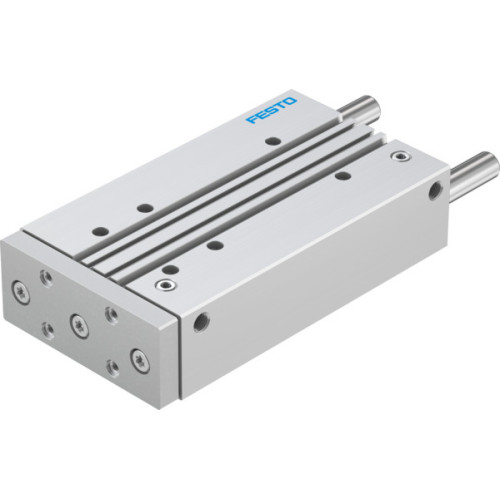

DFM-50-200-P-A-KF Guided drive

Manufacturer's No: DFM-50-200-P-A-KF     Manufacturer: Festo
DFM-50-200-P-A-KF Guided drive

Availability On Request

£841.12
  • Guided drive DFM-50-200-P-A-KF with integrated guide
  • Stroke: 200 mm, Piston diameter: 50 mm
  • Centre of gravity distance from working load to yoke plate: 50 mm
  • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar
  • Max. speed: 0.6 m/s, Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • Ambient temperature: -5°C to 60°C
  • Max. force Fy: 1487 N, Max. force Fz: 1487 N
  • Max. moment Mx: 81.79 Nm, Max. moment My: 62.46 Nm, Max. moment Mz: 62.46 Nm

Read more

  • Max. permissible torque load Mx: 12.04 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): 1057 N (return stroke), 1178 N (advance stroke)
  • Moving mass: 3221 g, Product weight: 7525 g
  • Pneumatic connection: G1/4
  • Material: Cover - Wrought aluminium alloy, Seals - NBR, Housing - Wrought aluminium alloy, Piston rod - High-alloy stainless steel


Product

Manufacturer Material ID -
DFM-50-200-P-A-KF
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£841.12
