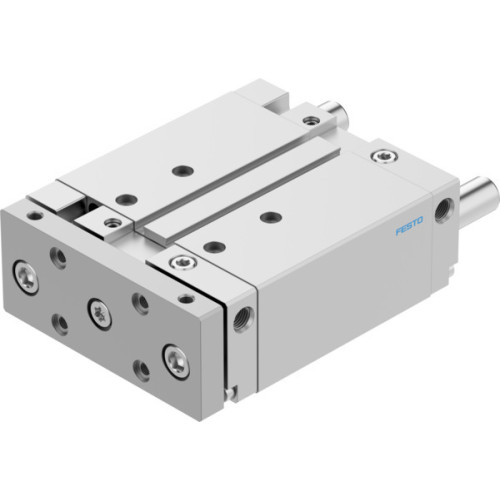

DFM-50-80-B-PPV-A-GF Guided drive

Manufacturer's No: DFM-50-80-B-PPV-A-GF     Manufacturer: Festo
DFM-50-80-B-PPV-A-GF Guided drive

Availability On Request

£606.05
  • Guided drive DFM-50-80-B-PPV-A-GF
  • Stroke: 80 mm
  • Piston diameter: 50 mm
  • Operating mode: Yoke
  • Pneumatic cushioning, adjustable at both ends
  • Plain-bearing guide
  • Position detection via proximity switch
  • Double-acting operation
  • Operating pressure: 0.1 MPa and 1 MPa
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Read more

  • Lubricated operation possible
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -20°C to 80°C
  • Impact energy in end positions: 1 J
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): 1057 N (return stroke) and 1178 N (advance stroke)
  • Pneumatic connection: G1/4
  • Material cover: Wrought aluminium alloy
  • Material seals: NBR
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DFM-50-80-B-PPV-A-GF
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£606.05
