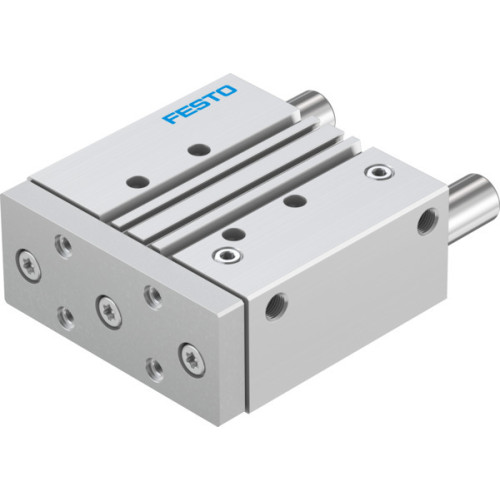

DFM-50-80-P-A-GF Guided drive

Manufacturer's No: DFM-50-80-P-A-GF     Manufacturer: Festo
DFM-50-80-P-A-GF Guided drive

Availability Back Order

£466.69
  • Guided drive DFM-50-80-P-A-GF with integrated guide
  • Stroke: 80 mm, Piston diameter: 50 mm
  • Operating mode: Yoke, Cushioning: Flexible cushioning rings/plates at both ends
  • Max. speed: 0.6 m/s, Mode of operation: Double-acting
  • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Ambient temperature: -20°C to 80°C
  • Max. force: Fy 1533 N, Fz 1533 N
  • Max. moment: Mx 84.33 Nm, My 54.43 Nm, Mz 54.43 Nm

Read more

  • Max. permissible torque load: Mx 15.6 Nm
  • Moving mass: 2687 g, Product weight: 5013 g
  • Pneumatic connection: G1/4
  • Material: Cover - Wrought aluminium alloy, Seals - NBR, Housing - Wrought aluminium alloy, Piston rod - High-alloy stainless steel

Accessories

PUN-H-8X1.25-TBL 6MM PLASTIC TUBING

Product Code - 8048691
Price £1.61
Back Order

QS-G1/4-8 PUSH-IN FITTING

Product Code - 186099
Price £2.98
Back Order

QSL-G1/4-8 PUSH-IN L-FITTING

Product Code - 186120
Price £4.50
Back Order

PUN-H-8X1 25-BL PLATIC TUBING

Product Code - 197385
Price £1.61
Back Order


Product

Manufacturer Material ID -
DFM-50-80-P-A-GF
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
