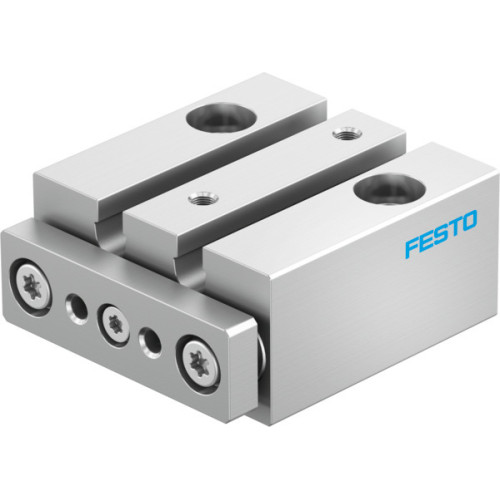

DFM-6-10-P-A-GF Guided drive

Manufacturer's No: DFM-6-10-P-A-GF     Manufacturer: Festo
DFM-6-10-P-A-GF Guided drive

Availability On Request

£107.19
  • Guided drive DFM-6-10-P-A-GF with integrated guide
  • Stroke: 10 mm
  • Piston diameter: 6 mm
  • Centre of gravity distance from working load to yoke plate: 10 mm
  • Operating pressure: 0.2 MPa, 0.8 MPa, 2 bar, 8 bar
  • Max. speed: 1.3 m/s
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: -10°C to 60°C

Read more

  • Impact energy in end positions: 0.012 Nm
  • Max. permissible torque load: 0.008 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): 13 N (return stroke), 17 N (advance stroke)
  • Torsional backlash: 0.1°
  • Moving mass: 9 g
  • Product weight: 33 g
  • Pneumatic connection: M3
  • Material cover: High-alloy stainless steel
  • Material seals: NBR
  • Material dynamic seals: HNBR
  • Material end plate: Anodised wrought aluminium alloy
  • Material guide rod: High-alloy stainless steel
  • Material housing: Anodised wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DFM-6-10-P-A-GF
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability On Request

£107.19
