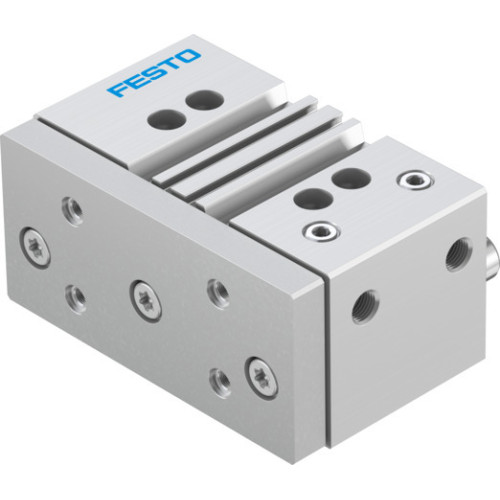

DFM-63-25-P-A-KF Guided drive

Manufacturer's No: DFM-63-25-P-A-KF     Manufacturer: Festo
DFM-63-25-P-A-KF Guided drive

Availability On Request

£502.67
  • Guided drive DFM-63-25-P-A-KF with integrated guide
  • Stroke: 25 mm
  • Piston diameter: 63 mm
  • Operating mode: Yoke
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Max. speed: 0.6 m/s
  • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • Ambient temperature: -5°C to 60°C

Read more

  • Max. force: Fy 1487 N, Fz 1487 N
  • Max. static force: Fy 1600 N, Fz 1600 N
  • Max. moment: Mx 92.97 Nm, My 31.98 Nm, Mz 31.98 Nm
  • Max. torque: Mx 100 Nm, My 34.4 Nm, Mz 34.4 Nm
  • Max. permissible torque load: 21.98 Nm
  • Theoretical force at 0.6 MPa: Return stroke 1750 N, Advance stroke 1870 N
  • Moving mass: 2241 g
  • Product weight: 4242 g
  • Pneumatic connection: G1/4
  • Material: Cover - Wrought aluminium alloy, Seals - NBR, Housing - Wrought aluminium alloy, Piston rod - High-alloy stainless steel


Product

Manufacturer Material ID -
DFM-63-25-P-A-KF
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
