DFM-80-100-P-A-GF Guided drive

Manufacturer's No: DFM-80-100-P-A-GF     Manufacturer: Festo

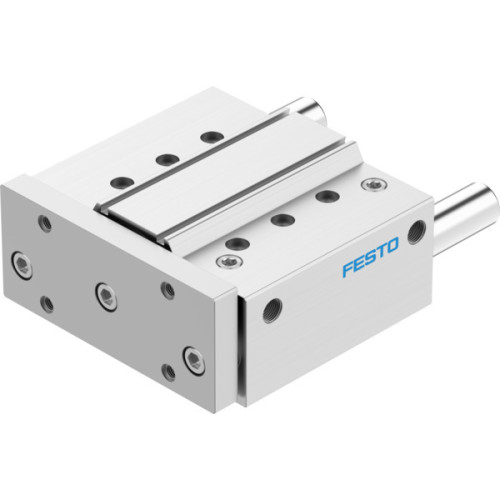

DFM-80-100-P-A-GF Guided drive

Availability On Request

£733.26
  • Guided drive DFM-80-100-P-A-GF with integrated guide
  • Stroke: 100 mm, Piston diameter: 80 mm
  • Centre of gravity distance from working load to yoke plate: 125 mm
  • Operating pressure: 0.05 MPa, 1 MPa, 0.5 bar, 10 bar
  • Max. speed: 0.4 m/s, Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Ambient temperature: -20°C to 80°C
  • Max. force Fy, Fz: 2320 N (static), Max. moment Mx, My, Mz: 126.4 NM (static)
  • Max. permissible torque load Mx: 36.7 NM

Read more

  • Theoretical force at 0.6 MPa (6 bar, 87 psi): 2827 N (return stroke), 3016 N (advance stroke)
  • Moving mass: 5734 g, Product weight: 10482 g
  • Pneumatic connection: G3/8
  • Material cover, housing: Wrought aluminium alloy, Material seals: NBR, Material piston rod: High-alloy stainless steel
  • Position detection: Via proximity switch
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Impact energy in end positions: 0.75 Nm
  • Mounting position: Optional
  • Guide: Plain-bearing guide
  • Design: Guidance
  • Symbol: 991737
  • Note on operating and pilot medium: Lubricated operation possible
  • Max. torque Mx, My, Mz (static): 179.8 NM, Max. effective load dependent upon stroke: 329 N
  • Alternative connections: See product drawing
  • Note on materials: RoHS-compliant
