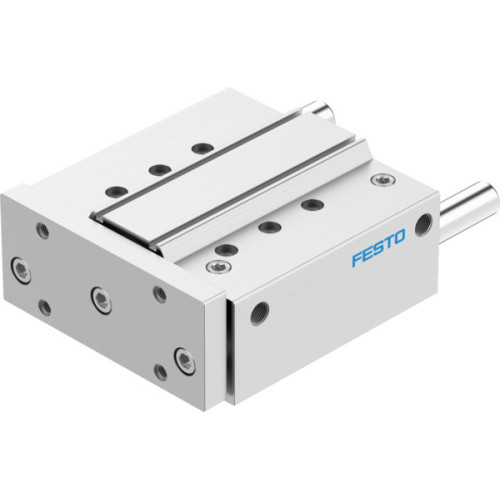

DFM-80-125-P-A-KF Guided drive

Manufacturer's No: DFM-80-125-P-A-KF     Manufacturer: Festo
DFM-80-125-P-A-KF Guided drive

Availability On Request

£938.73
  • Guided drive DFM-80-125-P-A-KF with integrated guide
  • Stroke: 125 mm
  • Piston diameter: 80 mm
  • Centre of gravity distance from working load to yoke plate: 125 mm
  • Operating pressure: 0.05 MPa, 1 MPa, 0.5 bar, 10 bar
  • Max. speed: 0.4 m/s
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • Max. force Fy: 2048 N, Max. force Fz: 2048 N
  • Max. moment Mx: 158.67 Nm, Max. moment My: 100.35 Nm, Max. moment Mz: 100.35 Nm

Read more

  • Max. torque Mx static: 241.8 Nm, Max. torque My static: 152.9 Nm, Max. torque Mz static: 152.9 Nm
  • Moving mass: 5093 g, Product weight: 10485 g
  • Pneumatic connection: G3/8
  • Material cover: Wrought aluminium alloy, Material seals: NBR, Material housing: Wrought aluminium alloy, Material piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DFM-80-125-P-A-KF
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£938.73
