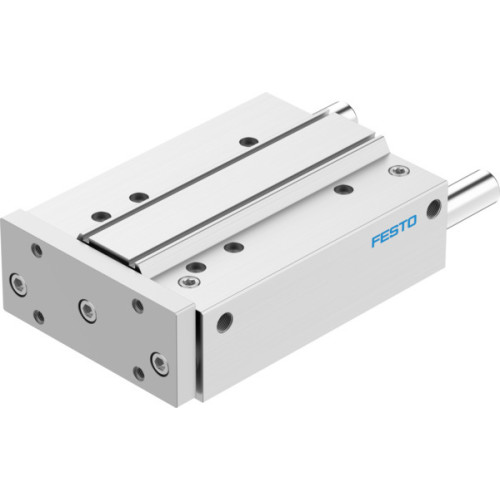

DFM-80-200-P-A-GF Guided drive

Manufacturer's No: DFM-80-200-P-A-GF     Manufacturer: Festo
DFM-80-200-P-A-GF Guided drive

Availability On Request

£931.21
  • Guided drive DFM-80-200-P-A-GF with integrated guide
  • Stroke: 200 mm, Piston diameter: 80 mm
  • Centre of gravity distance from working load to yoke plate: 125 mm
  • Operating pressure: 0.05 MPa, 1 MPa, 0.5 bar, 10 bar
  • Max. speed: 0.4 m/s, Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Ambient temperature: -20°C to 80°C
  • Max. force Fy, Fz: 2320 N, Max. moment Mx, My, Mz: 179.8 NM, 126.4 NM
  • Max. permissible torque load Mx: 24.68 NM

Read more

  • Theoretical force at 0.6 MPa, return stroke: 2827 N, advance stroke: 3016 N
  • Moving mass: 7099 g, Product weight: 14963 g
  • Pneumatic connection: G3/8
  • Material cover, housing: Wrought aluminium alloy, Material seals: NBR, Material piston rod: High-alloy stainless steel
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L


Product

Manufacturer Material ID -
DFM-80-200-P-A-GF
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£931.21
