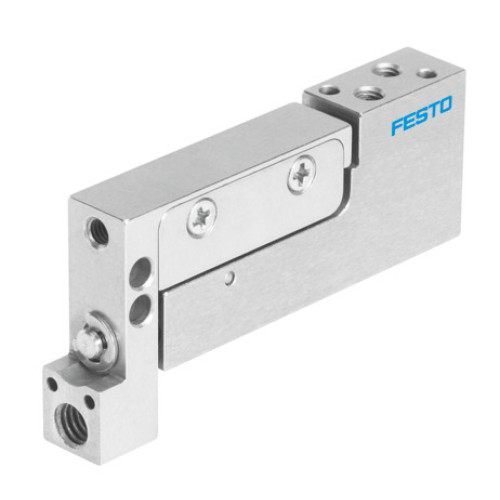

DGSC-6-10-P-L Mini slide

Manufacturer's No: DGSC-6-10-P-L     Manufacturer: Festo
DGSC-6-10-P-L Mini slide

Availability On Request

£250.83
  • Mini slide with a stroke of 10mm and a piston diameter of 6mm
  • Operating mode: Yoke drive unit with Scotch yoke system design
  • Elastic cushioning rings/plates at both ends for cushioning
  • Ball bearing cage guide for smooth operation
  • Double-acting mode of operation with no position detection
  • Operating pressure ranges from 0.1 MPa to 14.5 PSI
  • Repetition accuracy of 0.2mm for precise movements
  • Operating medium: Compressed air meeting ISO 8573-1:2010 [7:4:4] standards
  • Corrosion resistance class CRC: 2 for moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B2-L

Read more

  • Ambient temperature range from 10°C to 50°C
  • Max. force: Fy and Fz at 20N, Mx, My, and Mz at 0.3-0.4 NM
  • Theoretical forces at 0.6 MPa (6 bar, 87 psi): 12.7N (return stroke) and 17N (advance stroke)
  • Moving mass: 17g, product weight: 42g
  • Mounting via female thread and dowel pin, pneumatic connection: M3
  • RoHS-compliant materials: POM cover, NBR seals, high-alloy steel guide, high-alloy stainless steel housing and piston rod


Product

Manufacturer Material ID -
DGSC-6-10-P-L
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£250.83
