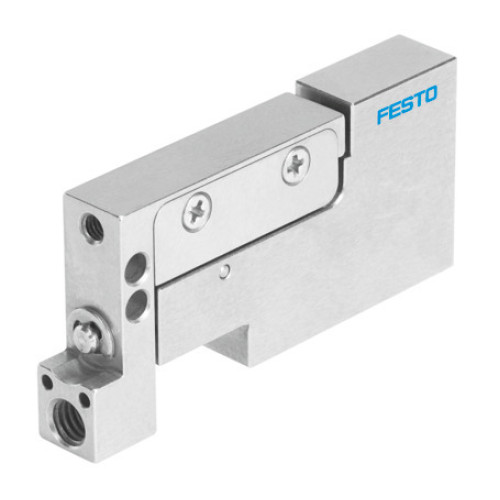

DGSC-6-10-P-P Mini slide

Manufacturer's No: DGSC-6-10-P-P     Manufacturer: Festo
DGSC-6-10-P-P Mini slide

Availability On Request

£250.83
  • Mini slide with a stroke of 10 mm and a piston diameter of 6 mm
  • Operating mode: Yoke drive unit with Scotch yoke system design
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Guide: Ball bearing cage guide for smooth operation
  • Operating pressure range: 0.1 MPa to 6 bar (1 bar to 87 psi)
  • Repetition accuracy: 0.2 mm for precise positioning
  • Double-acting operation for efficient performance
  • Operating medium: Compressed air meeting ISO 8573-1:2010 [7:4:4] standards
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B2-L for industry standards compliance

Read more

  • Wide ambient temperature range: 10°C to 50°C
  • Max. forces: Fy and Fz at 20 N, Mx, My, and Mz at 0.3 NM and 0.4 NM respectively
  • Theoretical forces at 0.6 MPa (6 bar, 87 psi): 12.7 N (return stroke) and 17 N (advance stroke)
  • Lightweight with a moving mass of 17 g and a total weight of 52 g
  • Easy mounting via female thread and dowel pin
  • Pneumatic connection: M3 for convenient installation
  • Materials: RoHS-compliant with cover made of POM, seals of NBR, guide of high-alloy steel, housing and piston rod of high-alloy stainless steel


Product

Manufacturer Material ID -
DGSC-6-10-P-P
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£250.83
