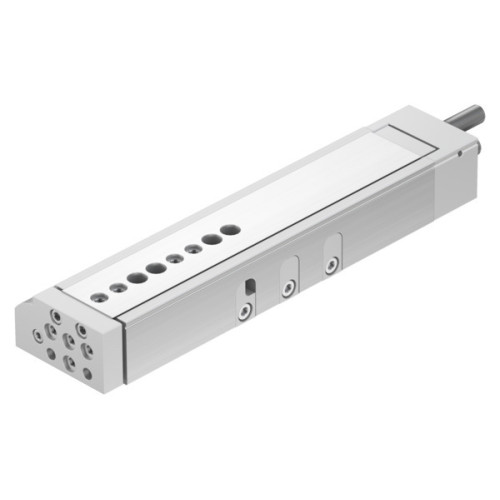

DGSL-10-100-P1A Mini slide

Manufacturer's No: DGSL-10-100-P1A     Manufacturer: Festo
DGSL-10-100-P1A Mini slide

Availability On Request

£866.69
  • Mini slide DGSL-10-100-P1A for position sensing
  • Stroke: 100 mm
  • Highly accurate and durable ball-cage guide
  • Very high repetition accuracy
  • Adjustable end position range: Front 75.5 mm, Rear 20 mm
  • Piston diameter: 12 mm
  • Operating mode of drive unit: Yoke
  • Elastic cushioning rings/pads at both ends with fixed stop
  • Guide: Ball bearing cage guide
  • Position detection: Via proximity switch

Read more

  • Operating pressure: 0.15 MPa to 8 bar
  • Max. speed: 0.8 m/s
  • Repetition accuracy: ±0.01 mm
  • Double-acting mode of operation
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: 0 to 60°C
  • Impact energy in end positions: 0.04 Nm
  • Cushioning length: 3.4 mm
  • Max. force: Fy 1250 N, Fz 1250 N
  • Max. moment: Mx 18 Nm, My 12 Nm, Mz 12 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): Return stroke 51 N, Advance stroke 68 N
  • Moving mass: 334 g, Product weight: 837 g
  • Pneumatic connection: M5
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DGSL-10-100-P1A
Net Weight -
0.96kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
