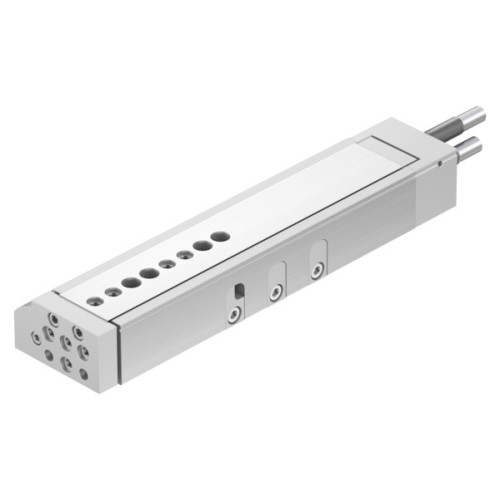

DGSL-10-100-Y3A Mini slide

Manufacturer's No: DGSL-10-100-Y3A     Manufacturer: Festo
DGSL-10-100-Y3A Mini slide

Availability On Request

£949.09
  • Mini slide DGSL-10-100-Y3A for precise position sensing
  • Stroke: 100 mm
  • Highly accurate ball-cage guide with hydraulic shock absorbers on both sides
  • Adjustable end position range: 72 mm (front), 15 mm (rear)
  • Piston diameter: 12 mm
  • Operating mode: Yoke
  • Progressive shock absorber at both ends for cushioning
  • Repetition accuracy: ±0.01 mm
  • Max. speed: 0.8 m/s
  • Operating pressure: 0.15 MPa to 8 bar

Read more

  • Double-acting operation with compressed air
  • Corrosion resistance class: 0 (No corrosion stress)
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature range: 0°C to 60°C
  • Impact energy in end positions: 1 Nm
  • Max. forces: Fy 1250 N, Fz 1250 N
  • Max. moments: Mx 18 Nm, My 12 Nm, Mz 12 Nm
  • Theoretical force at 0.6 MPa: 51 N (return stroke), 68 N (advance stroke)
  • Moving mass: 334 g, Product weight: 829 g
  • Pneumatic connection: M5
  • RoHS-compliant materials: Wrought aluminium alloy (cover, housing), HNBR (seals), High-alloy stainless steel (piston rod)


Product

Manufacturer Material ID -
DGSL-10-100-Y3A
Net Weight -
0.91kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£949.09
