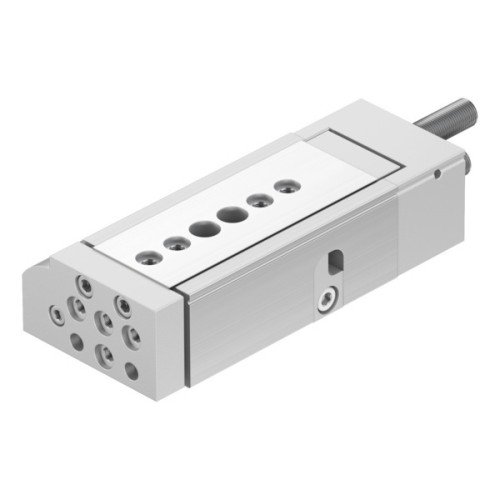

DGSL-10-20-PA Mini slide

Manufacturer's No: DGSL-10-20-PA     Manufacturer: Festo
DGSL-10-20-PA Mini slide

Availability Back Order

£519.73
  • Mini slide DGSL-10-20-PA with position sensing
  • Stroke: 20 mm
  • Adjustable end position range/front length: 27.5 mm
  • Adjustable end position range/rear length: 20 mm
  • Piston diameter: 12 mm
  • Operating pressure: 0.15 MPa to 8 bar
  • Max. speed: 0.8 m/s
  • Repetition accuracy: 0.3 mm
  • Mode of operation: Double-acting
  • Operating medium: Compressed air (ISO 8573-1:2010 [7:4:4])

Read more

  • Corrosion resistance class: 0 (No corrosion stress)
  • Cleanroom class: Class 7 (ISO 14644-1)
  • Ambient temperature: 0°C to 60°C
  • Impact energy in end positions: 0.12 Nm
  • Cushioning length: 1.3 mm
  • Max. force: Fy 1003 N, Fz 1003 N
  • Max. moment: Mx 15 Nm, My 7 Nm, Mz 7 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): Return stroke 51 N, Advance stroke 68 N
  • Moving mass: 180 g
  • Product weight: 464 g
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel
  • Pneumatic connection: M5
  • Mounting: With through-hole
  • Position detection: Via proximity switch
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Design: Yoke, Piston, Piston rod, Slide
  • Operating mode of drive unit: Yoke
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Note: Lubricated operation possible
  • Alternative connections: See product drawing
  • RoHS-compliant materials

Accessories

QSM-M5-4 PUSH-IN FITTING

Product Code - 153304
Price £2.53
Back Order

QSML-M5-4 PUSH-IN L-FITTING

Product Code - 153333
Price £3.66
Back Order


Product

Manufacturer Material ID -
DGSL-10-20-PA
Net Weight -
0.55kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
