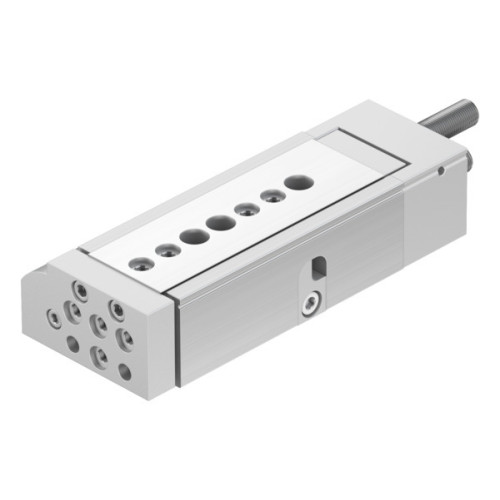

DGSL-10-30-P1A Mini slide

Manufacturer's No: DGSL-10-30-P1A     Manufacturer: Festo
DGSL-10-30-P1A Mini slide

Availability On Request

£635.33
  • Mini slide DGSL-10-30-P1A with highly accurate ball-cage guide
  • Stroke: 30 mm
  • Repetition accuracy: ±0.01 mm
  • Piston diameter: 12 mm
  • Operating pressure: 0.15 MPa to 8 bar
  • Max. speed: 0.8 m/s
  • Cushioning: Elastic cushioning rings/pads with fixed stop
  • Position detection: Via proximity switch
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Material: Wrought aluminium alloy housing and cover, HNBR seals, high-alloy stainless steel piston rod

Read more

  • Weight: 494 g
  • Moving mass: 194 g
  • Pneumatic connection: M5
  • Operating temperature: 0°C to 60°C
  • Max. force: 1078 N
  • Max. moments: 15 Nm (Mx), 8 Nm (My, Mz)
  • Impact energy in end positions: 0.04 Nm
  • Theoretical force at 0.6 MPa: 51 N (return stroke), 68 N (advance stroke)


Product

Manufacturer Material ID -
DGSL-10-30-P1A
Net Weight -
0.58kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£635.33
