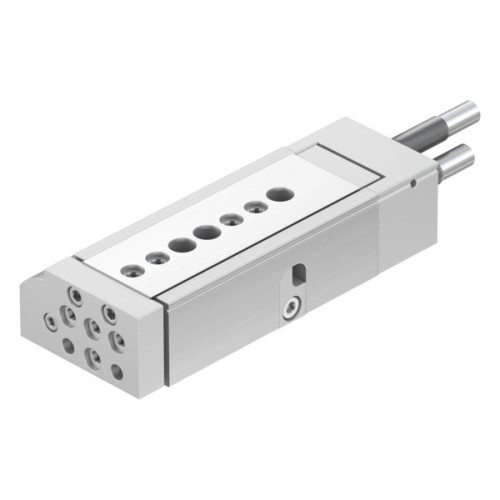

DGSL-10-30-Y3A Mini slide

Manufacturer's No: DGSL-10-30-Y3A     Manufacturer: Festo
DGSL-10-30-Y3A Mini slide

Availability On Request

£717.74
  • Mini slide DGSL-10-30-Y3A for precise position sensing
  • Stroke: 30 mm with adjustable end position range of 24 mm (front) and 15 mm (rear)
  • Piston diameter: 12 mm with a durable ball-cage guide for high repetition accuracy
  • Operating mode: Yoke with progressive shock absorbers on both ends
  • Mounting position: Optional with ball bearing cage guide
  • Position detection: Via proximity switch with a maximum speed of 0.8 m/s
  • Repetition accuracy: ±0.01 mm in a double-acting mode
  • Operating pressure: 0.15 MPa to 8 bar, operating medium: Compressed air
  • Corrosion resistance class: 0, suitable for cleanroom class 7 environments
  • Ambient temperature range: 0°C to 60°C

Read more

  • Max. force: 1078 N with a moving mass of 194 g
  • Material: Wrought aluminium alloy cover and housing, HNBR seals, high-alloy stainless steel piston rod
  • Pneumatic connection: M5 with RoHS-compliant materials


Product

Manufacturer Material ID -
DGSL-10-30-Y3A
Net Weight -
0.59kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£717.74
