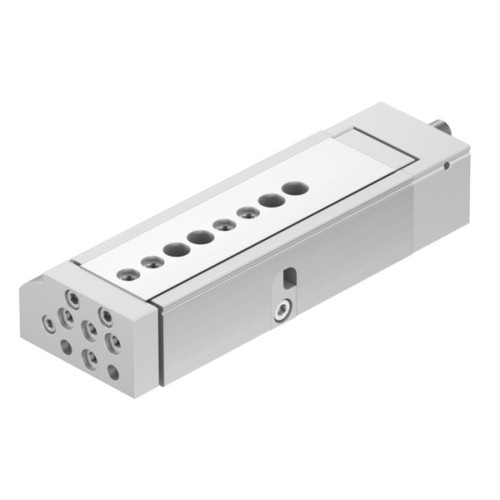

DGSL-10-50-EA Mini slide

Manufacturer's No: DGSL-10-50-EA     Manufacturer: Festo
DGSL-10-50-EA Mini slide

Availability On Request

£599.90
  • Mini slide with a stroke of 50mm
  • Adjustable end position range: 13mm front, 5.5mm rear
  • Piston diameter: 12mm
  • Operating mode: Yoke drive unit
  • Cushioning: Short elastic cushioning rings/pads at both ends
  • Guide: Ball bearing cage guide
  • Position detection via proximity switch
  • Operating pressure: 0.15MPa, 0.8MPa, 1.5 bar, 8 bar
  • Max. speed: 0.8m/s
  • Repetition accuracy: 0.3mm

Read more

  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature range: 0°C to 60°C
  • Impact energy in end positions: 0.12Nm
  • Cushioning length: 1.3mm
  • Max. force: Fy 1175N, Fz 1175N
  • Max. moments: Mx 18Nm, My 9Nm, Mz 9Nm
  • Theoretical force at 0.6MPa (6 bar, 87 psi): Return stroke 51N, Advance stroke 68N
  • Moving mass: 226g, Product weight: 565g
  • Alternative connections: Refer to product drawing
  • Type of mounting: With through-hole
  • Pneumatic connection: M5
  • RoHS-compliant materials: Wrought aluminium alloy cover, HNBR seals, High-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGSL-10-50-EA
Net Weight -
0.64kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£599.90
