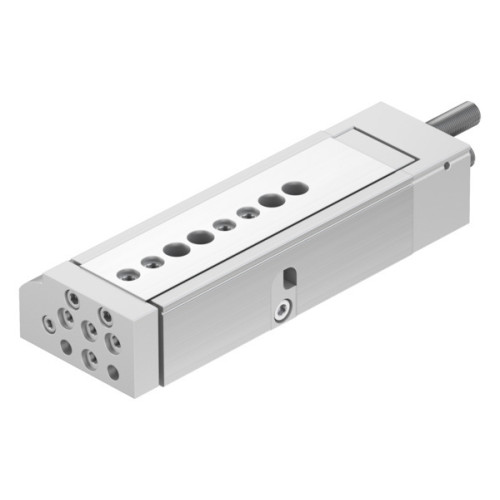

DGSL-10-50-P1A Mini slide

Manufacturer's No: DGSL-10-50-P1A     Manufacturer: Festo
DGSL-10-50-P1A Mini slide

Availability On Request

£701.41
  • Mini slide DGSL-10-50-P1A with highly accurate ball-cage guide
  • Stroke: 50 mm
  • Repetition accuracy: ±0.01 mm
  • Piston diameter: 12 mm
  • Operating pressure: 0.15 MPa to 8 bar
  • Max. speed: 0.8 m/s
  • Cushioning: Elastic cushioning rings/pads with fixed stop
  • Position detection: Via proximity switch
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 - No corrosion stress

Read more

  • Cleanroom class: Class 7 according to ISO 14644-1
  • Max. force: Fy and Fz - 1175 N; Mx, My, and Mz - 9 to 18 Nm
  • Moving mass: 226 g
  • Product weight: 572 g
  • Material: Cover and housing - Wrought aluminium alloy; Seals - HNBR; Piston rod - High-alloy stainless steel


Product

Manufacturer Material ID -
DGSL-10-50-P1A
Net Weight -
0.66kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£701.41
