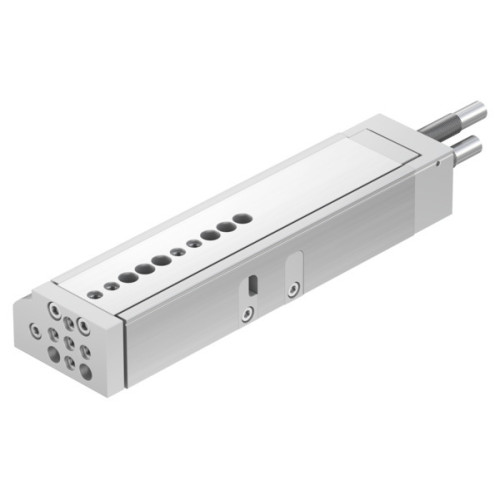

DGSL-12-100-Y3A Mini slide

Manufacturer's No: DGSL-12-100-Y3A     Manufacturer: Festo
DGSL-12-100-Y3A Mini slide

Availability On Request

£990.26
  • Mini slide DGSL-12-100-Y3A designed for position sensing
  • Features highly accurate and durable ball-cage guide
  • Hydraulic shock absorbers on both sides for increased durability (Y3)
  • Stroke: 100 mm
  • Adjustable end position range/front length: 68 mm
  • Adjustable end position range/rear length: 25.5 mm
  • Piston diameter: 16 mm
  • Operating mode of drive unit: Yoke
  • Progressive shock absorber at both ends for cushioning
  • Position detection via proximity switch

Read more

  • Operating pressure: 0.1 MPa to 8 MPa
  • Max. speed: 0.8 m/s
  • Repetition accuracy: ±0.01 mm
  • Double-acting operation
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature range: 0°C to 60°C
  • Impact energy in end positions: 2 Nm
  • Cushioning length: 10 mm
  • Max. forces: Fy 1340 N, Fz 1340 N
  • Max. moments: Mx 20 Nm, My 15 Nm, Mz 15 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): Return stroke 104 N, Advance stroke 121 N
  • Moving mass: 507 g
  • Product weight: 1265 g
  • Pneumatic connection: M5
  • RoHS-compliant materials
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DGSL-12-100-Y3A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
